Heavy Duty Lebus Double Helix Grooved Winch Drum Assembly for Offshore Lifting, Single Layer Winding

1.Product Description

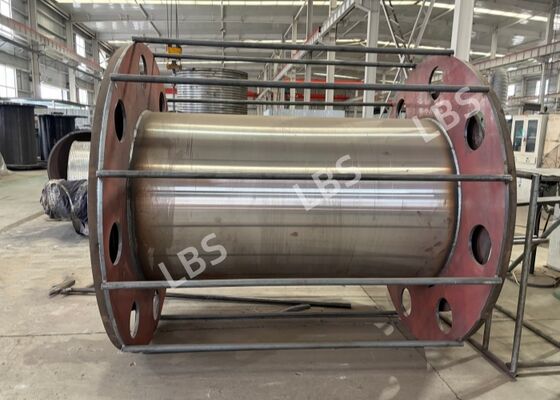

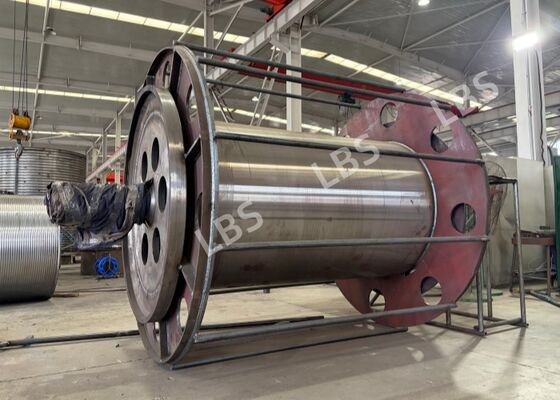

This C1350L Lebus grooved drum assembly is a heavy-duty welded drum designed for marine and offshore winch systems. It adopts Lebus double helix rope groove with left-hand 55° angle for single-layer wire rope winding.
The drum body, end plates, brake plate and rope clamping components are made of Q355D high-strength structural steel. Complete with factory-fitted rope clamping assembly, it provides reliable fixed connection for wire rope end. All critical welding follows JB/T11157‑2011 standard. Machined surfaces and threaded holes are protected against painting to guarantee assembly precision.
The Lebus rope groove eliminates wire rope overlapping, reduces abrasion and extends service life of steel wire rope under heavy load cyclic operation.

2.Parameter

3.Product Advantages

1. Lebus double helix rope groove design:Prevents wire rope cross-over and chaotic winding, greatly lowers rope wear and fatigue damage.
2. High strength Q355D steel:Excellent low-temperature toughness, fit for harsh offshore and marine environments.
3. Robust rope clamping system:Equipped with Q355D pressure plates, stop blocks and M33 Dacromet fasteners; firm and secure wire rope end fixation.
4. Strict welding control:Class B & Class C welds inspected as per JB/T11157‑2011, ensuring structural integrity under heavy dynamic loads.
5. Precision machining:Key mounting surfaces reserved without coating, ensures accurate alignment during winch assembly.
6. Long service life & low maintenance:Smooth rope groove with all sharp edges chamfered, no rope jamming during operation.

4.Application

This Lebus winch drum is widely used for offshore lifting winches, marine deck winches, offshore crane systems, heavy-duty marine hoisting equipment. It is suitable for heavy load hoisting and pulling operations on offshore platforms, barges and ships.
