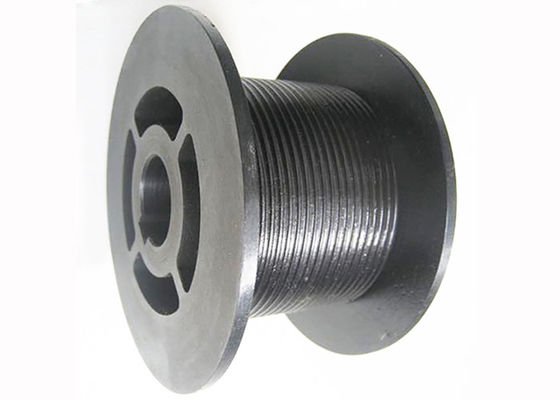

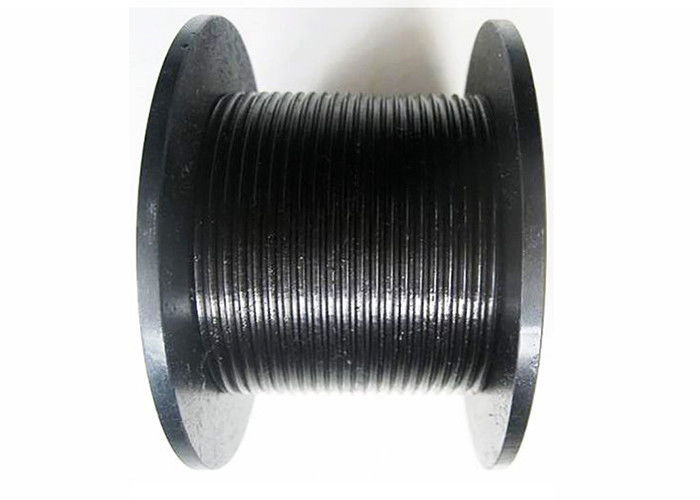

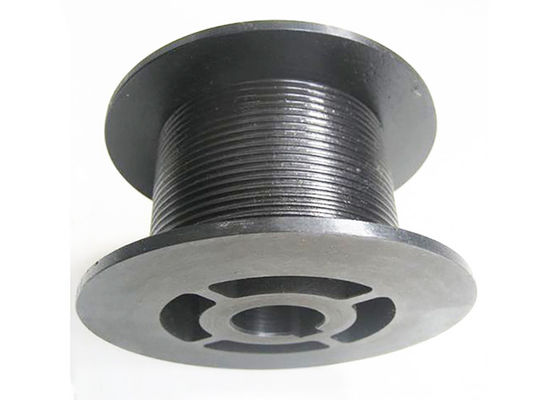

Product Name: | 6mm Wire Rope Grooved Winch Drum | Material: | Q355B |
---|---|---|---|
Groove Type: | Spiral Grooves | Surface Treatment: | Hot Spray Zinc |
Surface Color: | Gray | Structure: | Welded |
Dia.of Rope: | 6mm | Layer: | 1 Layer |
Use: | Assembly Winch | Rope Capacity: | 30m |
Highlight: | 30m grooved wire rope drum,Q355B grooved wire rope drum,Q355B steek lebus drum |
Mine winch is also called mine hoist, mine hoist, in the mine is very important equipment, is the throat of the mine.
The winch with drum diameter of 1.2 m and 1.6 m is called JTP- mine hoist;
Drum diameter of 2.0 meters, 2.5 meters, 3.0 meters, 3.5 meters and 4 meters and 6 meters diameter of more than 2 meters is known as JK mine hoist;
There are also some small winches mainly used for drift traction, not for the main lift are 0.4 m, 0.5 m, 0.6 m, 0.8 m.
Winch drum is an important part of oil rig winch, winch drum
One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end
The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed
Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound
The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum
The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength
Outside, but also to ensure that the wire rope winding neatly.
With the development of oil drilling winches in recent decades, winches appear more
The transmission form and the structure form, but the winding rope rule of the winch drum is not
Change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove
Double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire
Rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range
Small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove
The spiral Angle of the parallel section and the climbing section will affect the effect of drum rope winding, because
This, the study of winch drum structure and characteristics, will help to reduce or avoid
Oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum
Life.
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
The name | Lifting Equipment Wire Rope Stainles Steel Lebus Grooved Mine Host Drum |
Hoist speed | 0.95-1.27m/s |
Rotate speed | 720-960 r/min |
Rope diameter | 3-30mm |
Sling type | wire |
Direction rotation | left or right |
Application | hoist |
Parameter | can be designed |
Application | mining,oil drilling,or coal mine |
Drum diameter | 900mm |
Drum width | 600mm |
