Product Details:
Payment & Shipping Terms:
|
| Product Name: | Lebus Sleeve | Material: | Steel Or High Polymer |
|---|---|---|---|
| Groove Type: | Lebus Grooves | Brand: | LBS |
| Surface Color: | Gray | Connection Type: | Welded Or Bolted |
| Dia.of Rope: | 4~80mm | Layers: | 2~20 Layers |
| Use: | Assembly Winch | Grooving Machining: | CNC Machining |
| High Light: | OEM Lebus Sleeve,Large Capacity Lebus Sleeve,OEM LBS Sleeve |
||

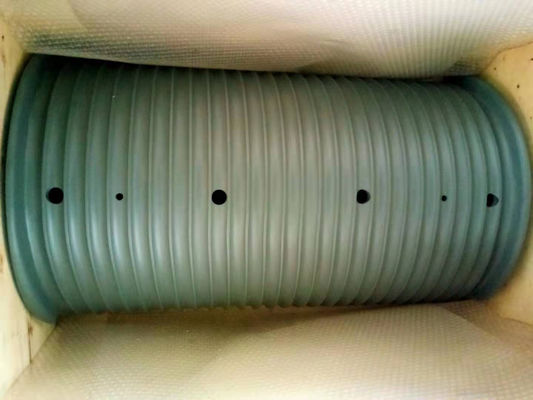

Split wire rope groove sleeves: grooved split sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum,It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly.
Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum,The split sleeve is composed of spiral groove and parallel groove,the groove design conforms to the specified wire rope structure, diameter and length.
If you using the smooth drum winch ,then you will face the problem that you want to change the rope type or the capacity or some usage working function like that ,now you only want to change the LBS groove sleeve installing on the smooth drum instead of to change the whole winch .That is convenient and save the time and money for you .
Materials of the sleeves: Low-carbon steel 20#,16Mn,Q235B,Q355B/D/E
|
1)LBS grooved drum, solved the problem of wire rope spooling. |
|
2)Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, |
|
3)extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope. |
| Rotation Direction: | Left or Right(as require) |
| Wire Rope Diameter: | 3 MM~190 MM |
| Wire capacity: | 100-10000M |
| Processing equipment: | CNC machining center |
| Durm Type: | LBS spooling system - based on the unique geometry of the drum grooving |
| Service: | All of the product be customized |
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 |
Offshore Crane, |
