Grooved Sleeve Winch Drum Parts High Polymer CCS certification

Grooved Sleeve Winch Drum Parts High Polymer CCS certification
Grooved Sleeve Winch Drum Parts High Polymer CCS certification Grooved Sleeve Winch Drum Parts High Polymer CCS certification Grooved Sleeve Winch Drum Parts High Polymer CCS certification Grooved Sleeve Winch Drum Parts High Polymer CCS certification

Large Image :  Grooved Sleeve Winch Drum Parts High Polymer CCS certification

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Steel Drum Sleeves Material: Q235/Q355B/Q355D/Q355E
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Gray Connection Type: Welded Or Bolted
Dia.of Rope: 4~80mm Layers: 2~20 Layers
Use: Assembly Winch Grooving Machining: CNC Machining
High Light:

High Polymer winch drum parts

,

Grooved Sleeve winch drum parts

Wire Rope Winch Drum High Polymer Metaril Lebus Grooved Sleeve





Product Introduction

Materials of the sleeves: Low-carbon steel 20#,16Mn,Q235B,Q355B/D/E

The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch

Product application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc



LBS advantage compared with the smooth or traditional spiral drum:



  1. Each one circle layer of the grooved drum has two parallel groove and two groove section
  2. Make the cable even smooth ;load even distribution
  3. Prevent cross &mess in cable rolling working happening
  4. Lower the cable damage, extend the cable life
  5. Save money and time compared with replace the whole winch

Product structure:

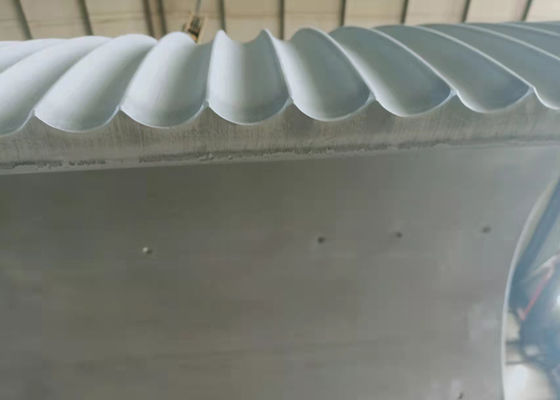

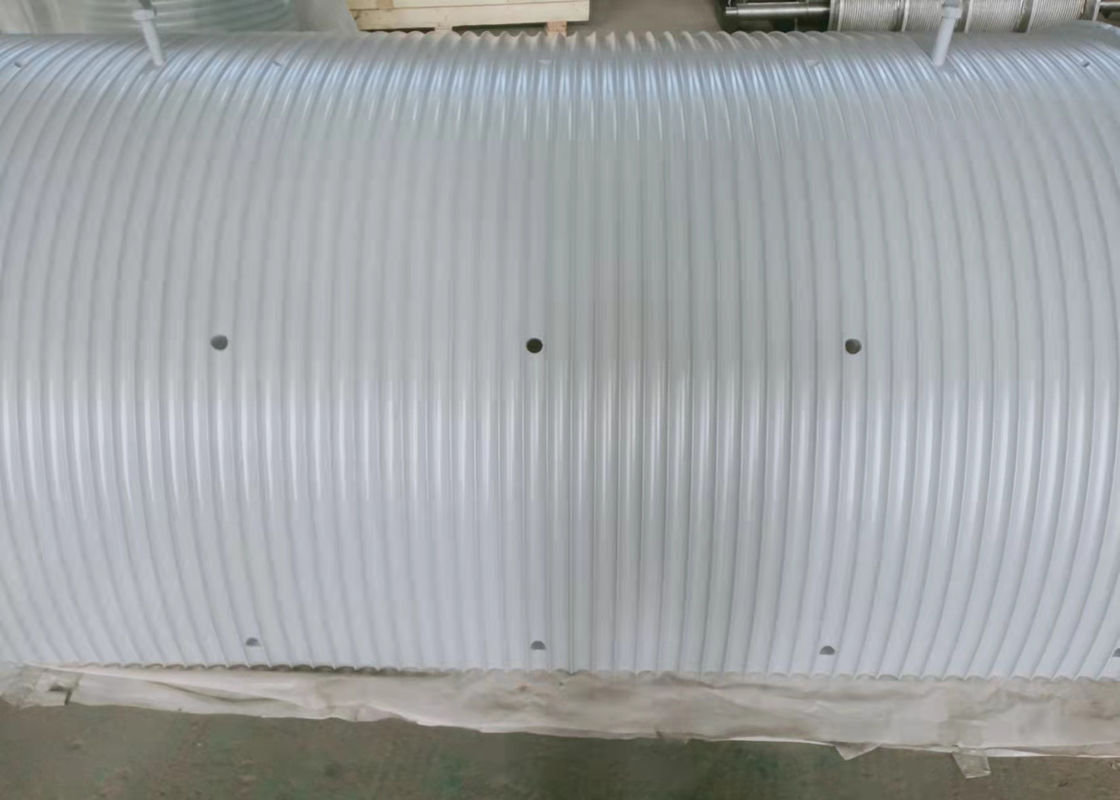

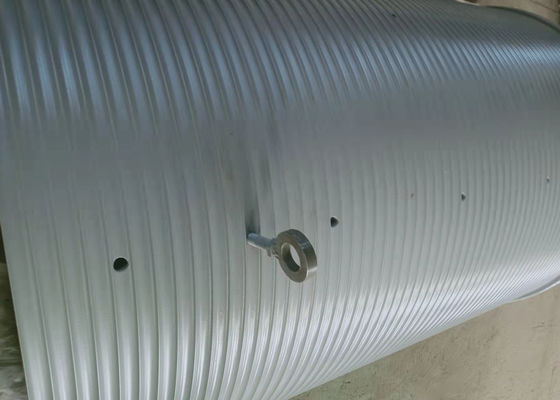

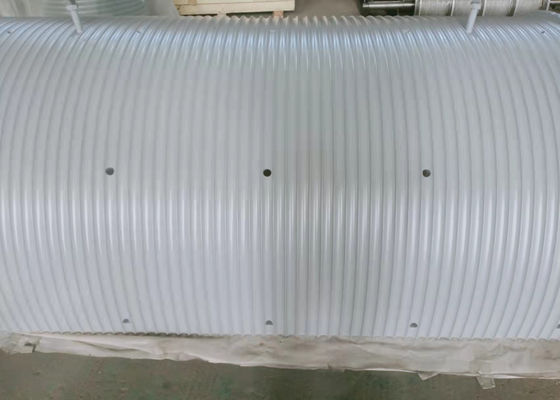

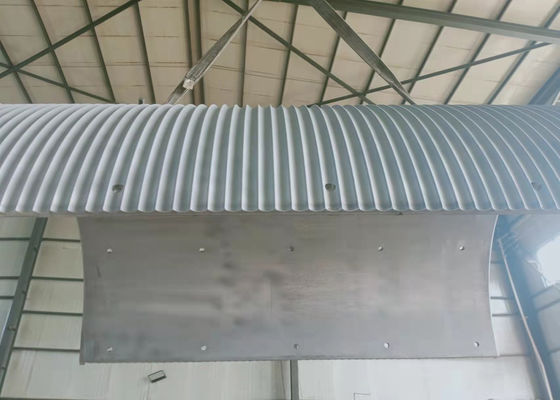

Split wire rope groove sleeve: grooved split sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum.
Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern,The split sleeve is composed of spiral groove and parallel groove,the groove design conforms to the specified wire rope structure, diameter and length.


Technical performance:

Winch (drawworks) is the core component of the oil rig, mainly used to deliver tools, hoist/descend s and run the drilling tools and pipe shrouds into the well during the drilling process.



product infromation

Product name Wire Rope Winch Drum High Polymer Metaril Lebus Grooved Sleeve
Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M




Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch





Grooved Sleeve Winch Drum Parts High Polymer CCS certification 0

Grooved Sleeve Winch Drum Parts High Polymer CCS certification 1Grooved Sleeve Winch Drum Parts High Polymer CCS certification 2
