CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable

CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable
CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable

Large Image :  CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Steel Drum Sleeves Material: Carbon Steel
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Gray Connection Type: Welded Or Bolted
Dia.of Rope: 3~80mm Layers: 2~20 Layers
Use: Assembly Winch Grooving Machining: CNC Machining
Highlight:

Lebus Drum sleeve

,

Grooved Lebus Drum sleeve

,

CCS winch drum parts

Fully Machined Carbon Steel Wire Rope Winch Parts Lebus Grooved Sleeve



.

Product lookview:

GROOVING TYPE: Special groove or helical groove

PRODUCT OTHER NAME: groove sleeve

PROCESSING EQUIPMENT: CNC machining center

DRUM GROOVE ROTATION: Lefthand ,Righthand

SLING TYPE: Wire rope or cable

ROPE CAPACITY:50-1000M

PRODUCT OTHER NAME: LBS groove drum or wire rope drum

GROOVING TYPE: LBS groove or helical groove

PROCESSING EQUIPMENT:CNC machining center

DRUM GROOVEROTATION:Lefthand ,Righthand

SLING TYPE:Wire rope or cable



Product material:

Polymer nylon, carbon steel, alloy steel, aluminum, all kinds of high-strength steel Q390 Q420 Q460 Q690 A709Gr50 S420N S460N SM490B DH32 AH36 DH36 NM500, etc

Supply standard: GB, American Standard AISI, ASME, ASTM, Japanese standard JIS / German standard DIN, standard NF, British standard BS, European standard EN, etc.

Shipboard has been certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR, etc.



Processing equipment:

CNC machining center



Sleeve working Temperature:

-25~+40 Centigrad



Product Introduction

Materials of the sleeves: Low-carbon steel 20#,16Mn,Q235B,Q355B/D/E

The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch

Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch



Product structure:

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product advantage:

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.

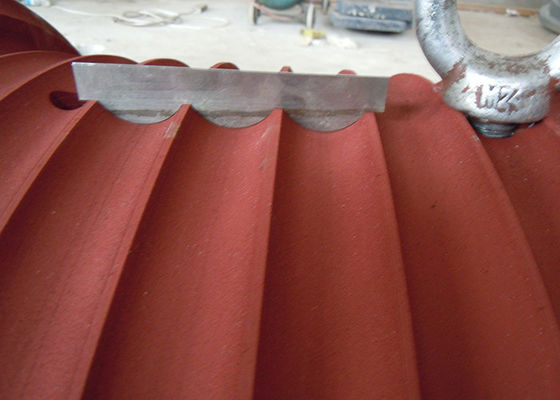

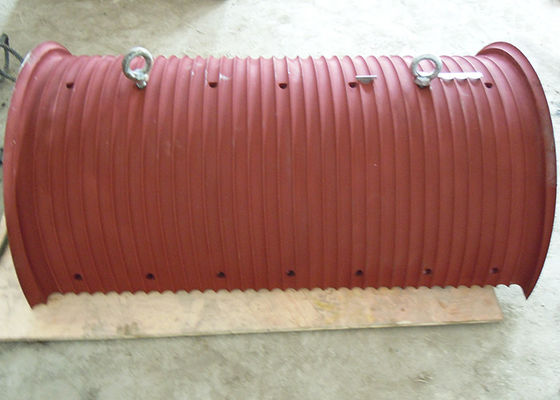

CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable 0CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable 1

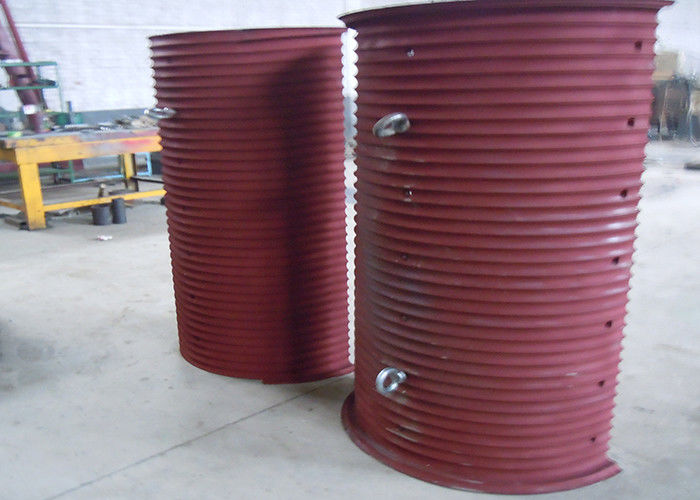

CCS Certified Grooved Lebus Drum Sleeve , Winch Drum Parts Durable 2
