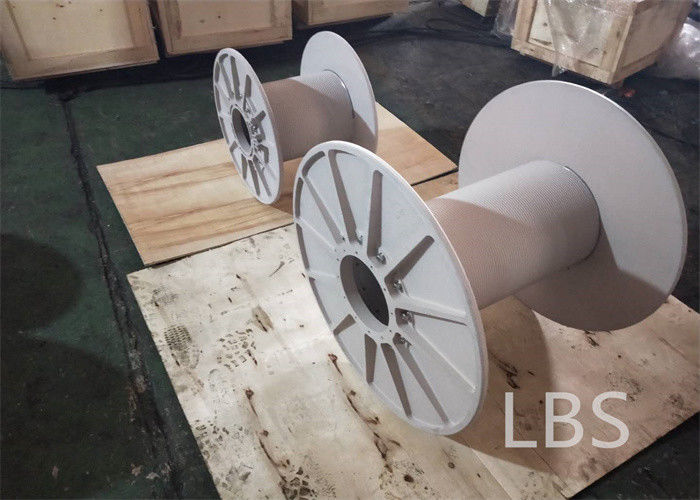

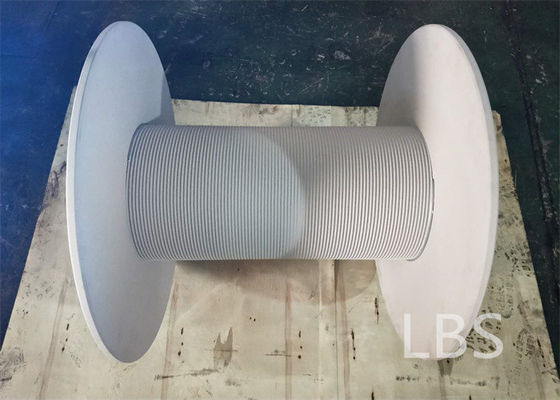

CCS Certified 900mm Diameter Steel Cable Drum For Construction

CCS Certified 900mm Diameter Steel Cable Drum For Construction
CCS Certified 900mm Diameter Steel Cable Drum For Construction CCS Certified 900mm Diameter Steel Cable Drum For Construction CCS Certified 900mm Diameter Steel Cable Drum For Construction

Large Image :  CCS Certified 900mm Diameter Steel Cable Drum For Construction

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Lebus Grooved Winch Drum Material: Q355B Steel
Groove Type: Spiral Grooves Surface Treatment: Hot Spray Zinc
Surface Color: Gray Structure: Welded
Dia.of Rope: 6mm/8mm Layer: 1 Layer
Use: Assembly Winch Rope Capacity: 30m
High Light:

CCS steel cable drum

,

900mm steel cable drum

,

900mm mooring winch drum

Construction and Mining equipent Alloy Steel Wire Rope Lebus Grooved Winch Drum





Overview

The Lebus cable groove winch developed by our company solves the following problems:

1. The steel wire rope can be wrapped in multiple layers without disorderly rope;

2. Wire rope winding speed is not restricted;

3. The load is evenly distributed between the wire ropes;

4. Under the condition of load, no rope biting or rope skipping between the wire ropes;

5. Reduce the damage of wire rope and improve the safety;

6. Reduce the downtime of wire rope replacement, greatly improve the work efficiency.

After using a large number of data sheet: prolong the service life of wire rope more than 500%



Range of application

Widely used in offshore platforms, petroleum machinery, water conservancy machinery, port machinery, large engineering machinery lifting equipment.



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center



types of structure

Winch drum with groove mainly has the following three types of structure

1, splicing type. In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together

2, integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.

3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.



Product information

The name Construction and Mining equipent Alloy Steel Wire Rope Lebus Grooved Winch Drum
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm





Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



Service conditions of Lebus groove

1. The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2. The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.

3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.

4. When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.

5. The rope must be kept round,not loose,even under the maximum load.

6. The rope must be anti-rotation structure.

Pls measure the change of rope diameter under different load
