Product Details:
Payment & Shipping Terms:
|

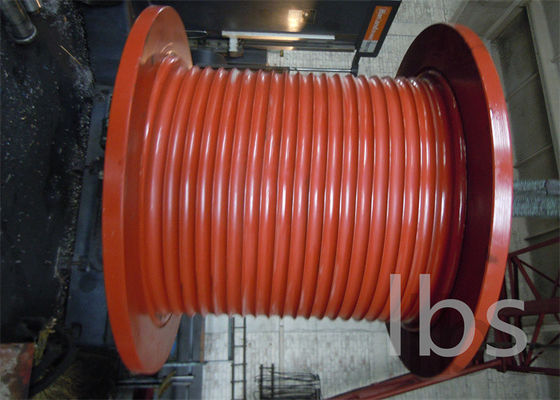

| Product Name: | T Lebus Grooved Wire Rope Single Winch Drum | Material: | Q355B |
|---|---|---|---|
| Groove Type: | Spiral Grooves | Surface Treatment: | Hot Spray Zinc |
| Surface Color: | Gray | Structure: | Welded |
| Dia.of Rope: | 6mm | Layer: | 1 Layer |
| Use: | Assembly Winch | Rope Capacity: | 30m |
| Highlight: | 6mm Grooved Winch Drum,30m capacity Grooved Winch Drum |
||
| Product name | Customizable Lifting Equipment Lebus Grooved Wire Rope Single Winch Drum |
| color | yellow /black /gray/as customes |
| size | 35*35*20 |
| Pull | 8/10/15/20 |
| layer | 1-7 |
| Wire rope capacity | 17-230 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| L/min | 36/56 |
|
No: |
Wire diameter(mm) |
Pulling Force(KN) |
Rotation Direction |
Drum Diameter(mm) |
Drum Length(mm) |
|
1 |
3~8 |
3~10 |
Lefthand,Righthand |
>160 |
<1000 |
|
2 |
10~16 |
12~20 |
Lefthand,Righthand |
>320 |
<1000 |
|
3 |
18~24 |
20~80 |
Lefthand,Righthand |
>480 |
<1000 |
|
4 |
26~32 |
100~120 |
Lefthand,Righthand |
>640 |
<1000 |
|
5 |
34~40 |
150~200 |
Lefthand,Righthand |
>800 |
<1000 |
|
6 |
42~50 |
240~400 |
Lefthand,Righthand |
>1000 |
<1000 |
1. The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2. The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.
3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.
4. When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.
5. The rope must be kept round,not loose,even under the maximum load.
6. The rope must be anti-rotation structure.
7. Pls measure the change of rope diameter under different load.
Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.
