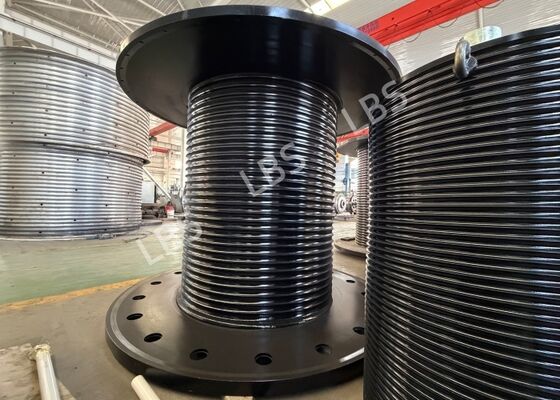

Q355C Luffing Lebus Drum, Left-hand Double Helix Groove Winch Drum

1.Product Description

This Lebus drum is the core load-bearing part for luffing winch of heavy cranes. Made of Q355C low-alloy high-strength steel with good low-temperature toughness, it works reliably outdoors and offshore. It adopts 65° left-hand double-helix Lebus groove for up to 7 layers of wire rope winding. The barrel is preferably rolled from a single steel plate. All butt welds are Grade 1 and inspected by UT & RT NDT. After welding, the drum is stress-relief annealed, then precision machined with final groove finishing to ensure coaxiality and cylindricity. Equipped with rope entry guide and cross-layer transition plates, it comes pre-assembled with full rope anchoring kits. Its right flange can be match-drilled with large gear for high coaxiality. This M4-duty drum is manufactured in accordance with crane national standards for continuous heavy-duty operation.

2.Product Parameter

3.Product Advantage

(1)Lebus double helix groove: Enables smooth multi-layer rope transition, prevents rope tangling, jumping and squeezing, extends wire rope service life.

(2)Robust welding & heat treatment: Grade 1 weld with dual NDT inspection. Post-weld stress relief annealing reduces barrel deformation for stable performance.

(3)High precision machining: Tight geometric tolerance control. Match drilling with large gear reduces vibration and protects transmission parts.

(4)Pre-assembled delivery: Rope anchoring kits pre-installed at factory, saving on-site work and eliminating installation risks.

(5)Adapt to harsh environments: Q355C steel with excellent low-temperature toughness, suitable for outdoor, port and offshore salt spray conditions.

(6)Clear maintenance & scrap criteria: Quantified inspection rules simplify equipment management and ensure lifting safety.

(7)Standard-compliant: Manufactured per crane national standards, easy for third-party project acceptance.

4.Product Application

• Luffing winch core drum for large crawler cranes, portal cranes and floating port cranes
• Multi-layer wire rope hoisting winch systems on offshore engineering platforms and marine lifting winches
• Heavy-duty hoisting winches of heavy construction machinery and large material handling equipment
• Lifting equipment in mining and engineering vessels requiring orderly multi-layer rope spooling up to 7 layers
