15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches

15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches
15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches

Large Image :  15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: High Polymers Product Name: Grooved Double Or Four Drums Sleeves
Grooved Type: Lebus Grooved Color: Black
Connection Type: Welded Or Bolted Dia. Of Rope: 4~80mm
Layes: 2~20 Layes Used: Assembly Winch
Grooving Machine: CNC Machining Warranty: 1Year
High Light:

150KN lebus groove

,

15 Layers lebus groove

15 Layers 150kN Hydraulic Rope Winches Grooved Double Or Four Drums Sleeves





advantage of sleeves

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.

.Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement

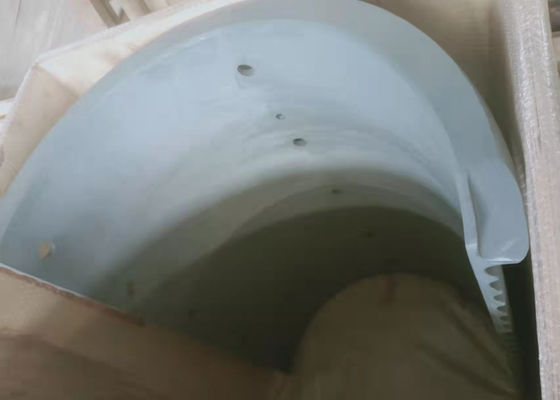

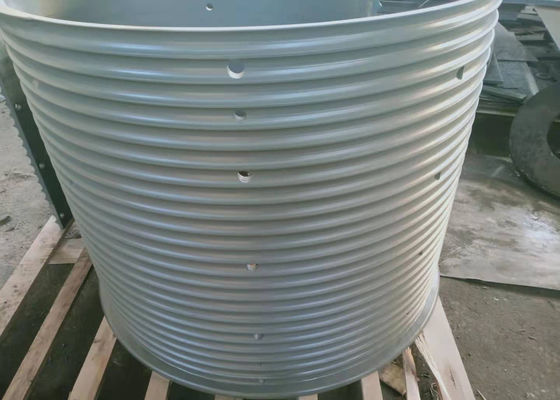

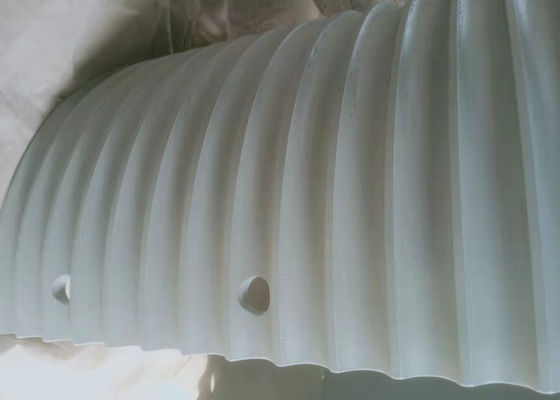

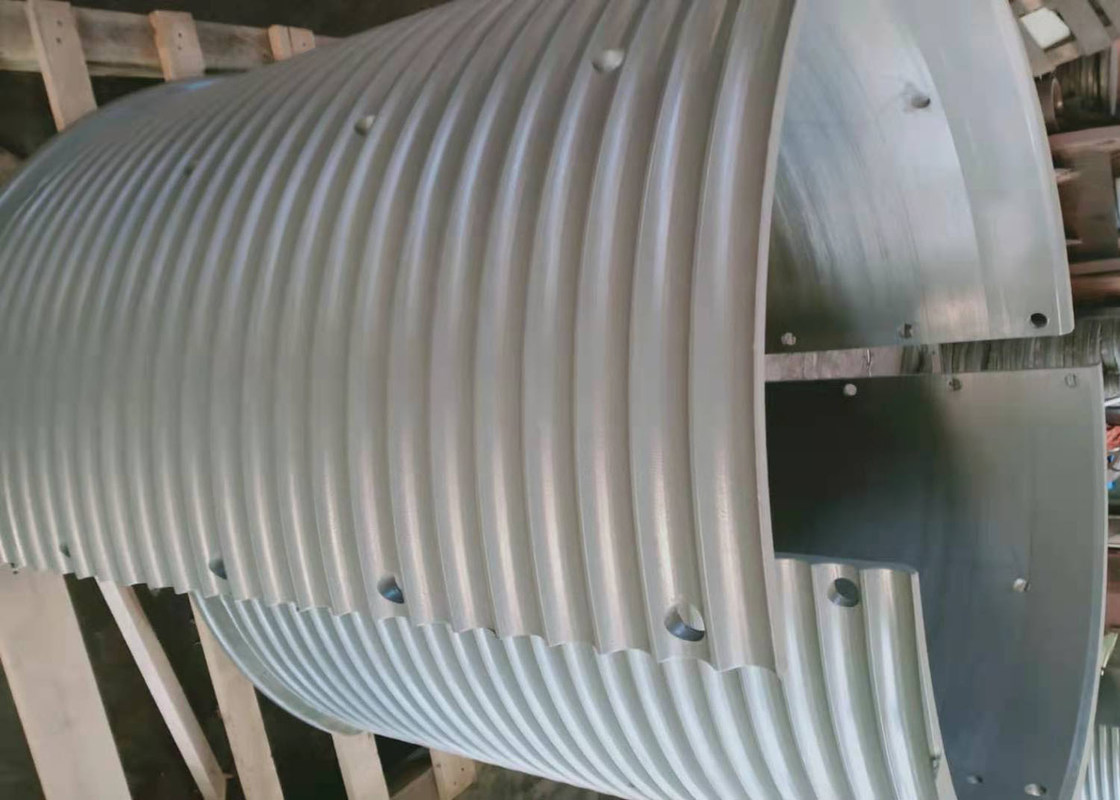

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.


Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.


Production Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine


Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch


Technical Parameters

No:
Wire diameter(mm)
Pulling Force(KN)
Rotation Direction
Drum Diameter(mm)
Drum Length(mm)
1
3~8

3~10
Lefthand,Righthand
>160
<1000
2
10~16

12~20
Lefthand,Righthand
>320
<1000
3
18~24

20~80
Lefthand,Righthand
>480
<1000
4
26~32

100~120
Lefthand,Righthand
>640
<1000
5
34~40

150~200
Lefthand,Righthand
>800
<1000
6
42~50

240~400
Lefthand,Righthand
>1000
<1000





15 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 015 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 115 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 215 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 315 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 415 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 515 Layers 150KN Lebus Groove Sleeve For Hydraulic Rope Winches 6
