Product Details:
Payment & Shipping Terms:
|
Material: | High Polymer | Product Name: | Groove Drums Sleeves |
---|---|---|---|
Grooved Type: | Lebus Grooved | Surface Color: | Black |
Connection Type: | Welded Or Bolted | Dia. Of Rope: | 3~100mm |
Layes: | 2~20 Layes | Used: | Assembly Winch |
Grooving Machine: | CNC Machining | Warranty: | 1 Year |
Highlight: | 800mm Grooved Drum Sleeves,Lebus Grooved Drum Sleeves |

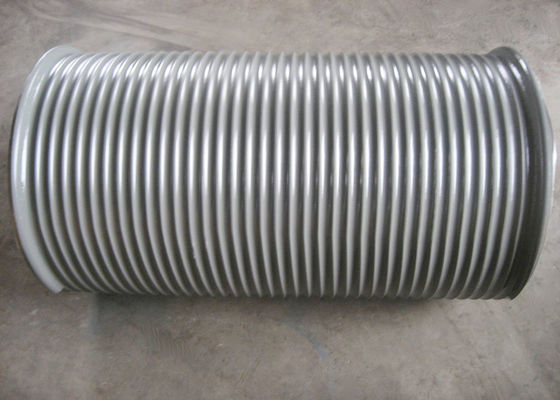

LBS drum is a kind of groove for multi-layer winding of wire rope introduced from abroad. Because of this rope groove in the drum
Most of the circumferential section is kept parallel to the flange end face, only in a very small section and the flange end face intersection, so the rope groove must
However, there is a phenomenon of turning, it is named "folding rope groove" too.
Years of practical use has proved that this kind of drum with special rope groove structure can well solve the difficulty of multi-layer winding rope
The double folding cable groove system ensures that the multi-layer winding wire rope on the drum is completely smoothly drawn into and rolled out of the drum, and can be

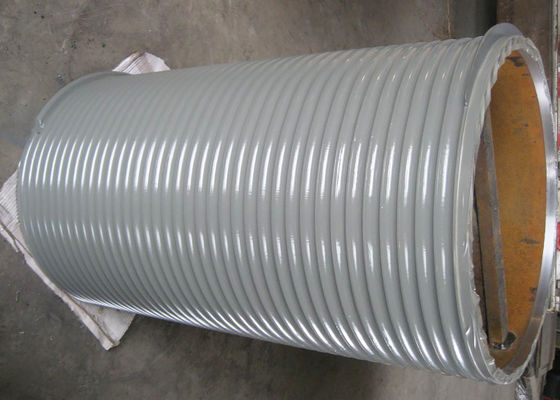

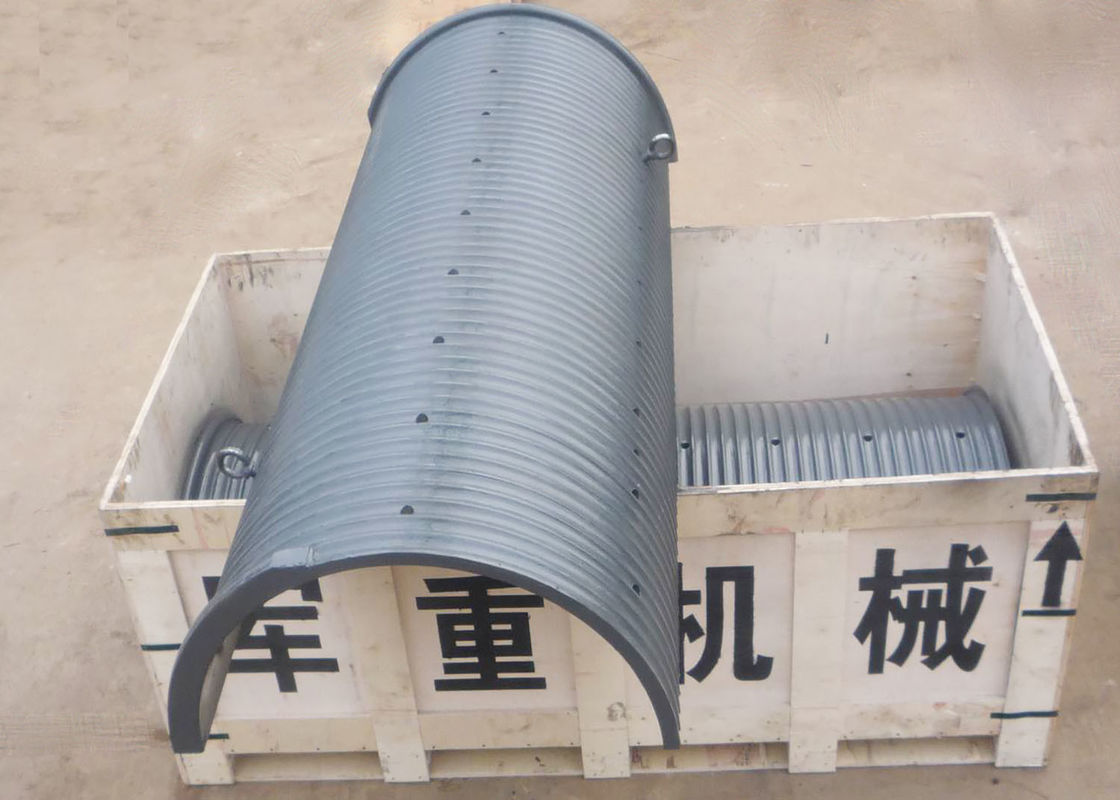

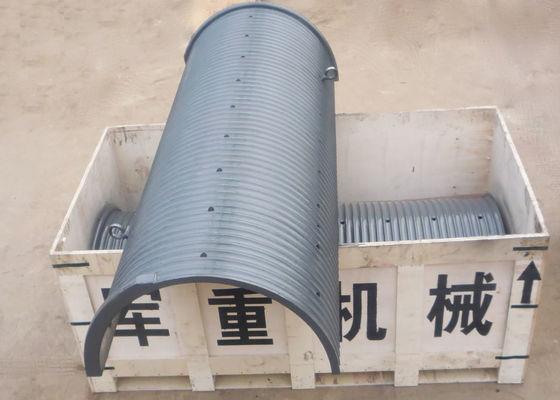

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.
No:
|
Wire diameter(mm)
|
Pulling Force(KN)
|
Rotation Direction
|
Drum Diameter(mm)
|
Drum Length(mm)
|
1
|
3~8
|
3~10
|
Lefthand,Righthand
|
>160
|
<1000
|
2
|
10~16
|
12~20
|
Lefthand,Righthand
|
>320
|
<1000
|
3
|
18~24
|
20~80
|
Lefthand,Righthand
|
>480
|
<1000
|
4
|
26~32
|
100~120
|
Lefthand,Righthand
|
>640
|
<1000
|
5
|
34~40
|
150~200
|
Lefthand,Righthand
|
>800
|
<1000
|
6
|
42~50
|
240~400
|
Lefthand,Righthand
|
>1000
|
<1000
|
Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
