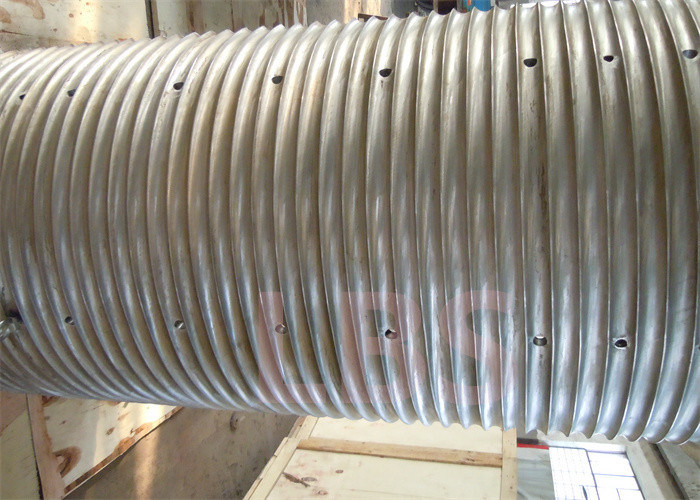

6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining

6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining
6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining 6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining 6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining 6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining

Large Image :  6mm Rope Lebus Sleeve Stainless Steel Grooved CNC Machining

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Q235/Q355B/Q355D/Q355E Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Surface Color: Gray
Connection Type: Welded Or Bolted Dia. Of Rope: 2~100mm
Layes: 2~20 Layes Used: Assembly Winch
Grooving Machine: CNC Machining Surface: Spray Zinc Rich Primer
High Light:

Stainless Steel lebus sleeve

,

6mm rope lebus sleeve

6mm Wire Rope Winch Stainless Steel Lebus Grooved Drum Sleeves





Advantage Of The LBS Grroved

This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.

LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.



Disadvantage Of The LBS Grroved

The disadvantage of LBS rope groove drum is that it is more complex, so it is a little more expensive than the spiral rope groove drum. However, this additional cost is quickly compensated for by the savings in wire rope, which is expensive and takes up production time to replace.



Advantage Of Sleeves

Generally, the tighter the wire rope is, the better it is wound. The wire rope should withstand at least 2% of the breaking load or 10% of the operating load as recommended by LeBus. Of course, for safety factor and wire rope design, must be prepared to withstand the destructive load.

The design and manufacture of folding rope groove drum should meet the special requirements of lifting operation, and the type of rope groove should adapt to the length, diameter and structure type of wire rope. Mechanical design, machining, design software, mechanical engineer, equipment management, welding, hydraulic, casting, sealing.



Technical Parameters

No:
Wire diameter(mm)
Pulling Force(KN)
Rotation Direction
Drum Diameter(mm)
Drum Length(mm)
1
3~8

3~10
Lefthand,Righthand
>160
<1000
2
10~16

12~20
Lefthand,Righthand
>320
<1000
3
18~24

20~80
Lefthand,Righthand
>480
<1000
4
26~32

100~120
Lefthand,Righthand
>640
<1000
5
34~40

150~200
Lefthand,Righthand
>800
<1000
6
42~50

240~400
Lefthand,Righthand
>1000
<1000



Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
