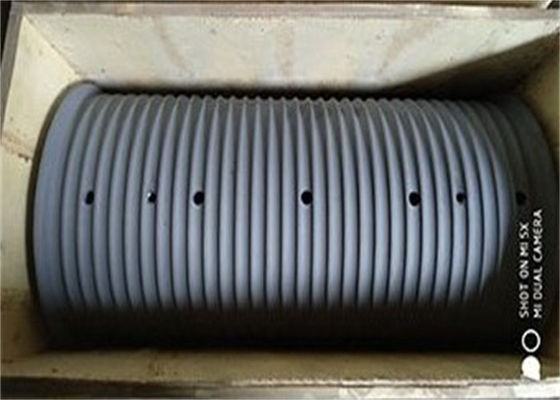

15 Layes Grooved Drum Sleeves

15 Layes Grooved Drum Sleeves
15 Layes Grooved Drum Sleeves 15 Layes Grooved Drum Sleeves 15 Layes Grooved Drum Sleeves

Large Image :  15 Layes Grooved Drum Sleeves

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Q235/Q355B/Q355D/Q355E Product Name: Lebus Grooved Drum Sleeves
Grooved Type: Lebus Grooved Surface Color: Gray
Connection Type: Welded Or Bolted Dia. Of Rope: 2~80mm
Layes: 2~15 Layes Used: Hoist
Grooving Machine: CNC Machining Surface: Spray Zinc Rich Primer
High Light:

LBS Grooved Drum Sleeves


15 Layes Grooved Drum Sleeves

Customizable Wrie Rope Hoist Lebus Grooved  Drum Sleeves



Classification of Hoist

1,According to the power winch is divided into pneumatic, manual, electric, hydraulic three types. From the use of the classification can be divided into building winch and Marine winch.

2,According to the function of winch can be divided into: Marine winch, engineering winch, mining winch, cable winch and so on.

3,According to the drum form is divided into single drum and double drum.

4,According to the drum distribution form is divided into parallel double drum and double drum before and after.

5,Special types of winch are: frequency conversion winch, double drum winch, handbrake lever double brake winch, with limit winch, electric control winch, electric control handbrake clutch winch, large double drum double brake winch, large external gear winch, large hydraulic winch, large external gear with rope arrangement winch, double drag winch, Large hydraulic double cylinder double brake winch, frequency conversion belt limiter rope groove winch.


Features of Hoist

Winch has the following characteristics: high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as the supporting equipment of modern electronic control automatic operation line. There are 0.5 to 350 tons, divided into fast and slow two kinds. Which is higher than 20 tons for the large tonnage winch, winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope, easy to move and widely used. The main technical indicators of winch are rated load, support load, rope speed, rope capacity and so on.


Use of Hoist

The main uses of the winch are as follows: first, as lifting equipment, it is used for mine lifting, sinking lifting and suspension (lifting) sinking equipment and facilities, that is, along the shaft lifting ore, waste (gangue) stone, lifting personnel, lowering materials, tools and equipment; Second, it is used as transportation equipment for underground scheduling and transportation of ore (harvester), stope rake ore (slag) or filling, removing columns, etc.

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine

Technical Parameters

Wire diameter(mm)
Pulling Force(KN)
Rotation Direction
Drum Diameter(mm)
Drum Length(mm)



Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.



15 Layes Grooved Drum Sleeves 015 Layes Grooved Drum Sleeves 115 Layes Grooved Drum Sleeves 215 Layes Grooved Drum Sleeves 315 Layes Grooved Drum Sleeves 415 Layes Grooved Drum Sleeves 515 Layes Grooved Drum Sleeves 615 Layes Grooved Drum Sleeves 715 Layes Grooved Drum Sleeves 815 Layes Grooved Drum Sleeves 9
