6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine

6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine
6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine 6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine 6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine 6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine

Large Image :  6mm Wire 25 Layes Grooved Drum Sleeves CNC Machining For Winch Machine

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: High Polymer Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Color: Can Be Customizable
Connection Type: Welded Or Bolted Dia. Of Rope: 4~80mm
Layes: 25 Layes Used: Assembly Winch
Grooving Machine: CNC Machining Supply Ability: 2000 Sets Per Month
High Light:

25 Layes Grooved Drum Sleeves

,

6mm wire Grooved Drum Sleeves

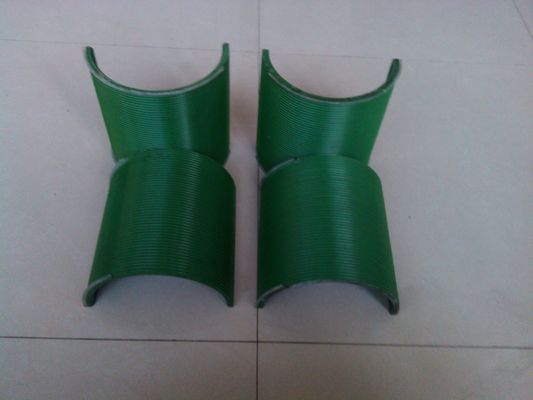

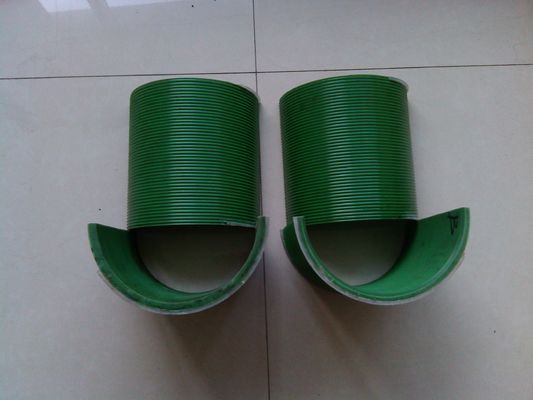

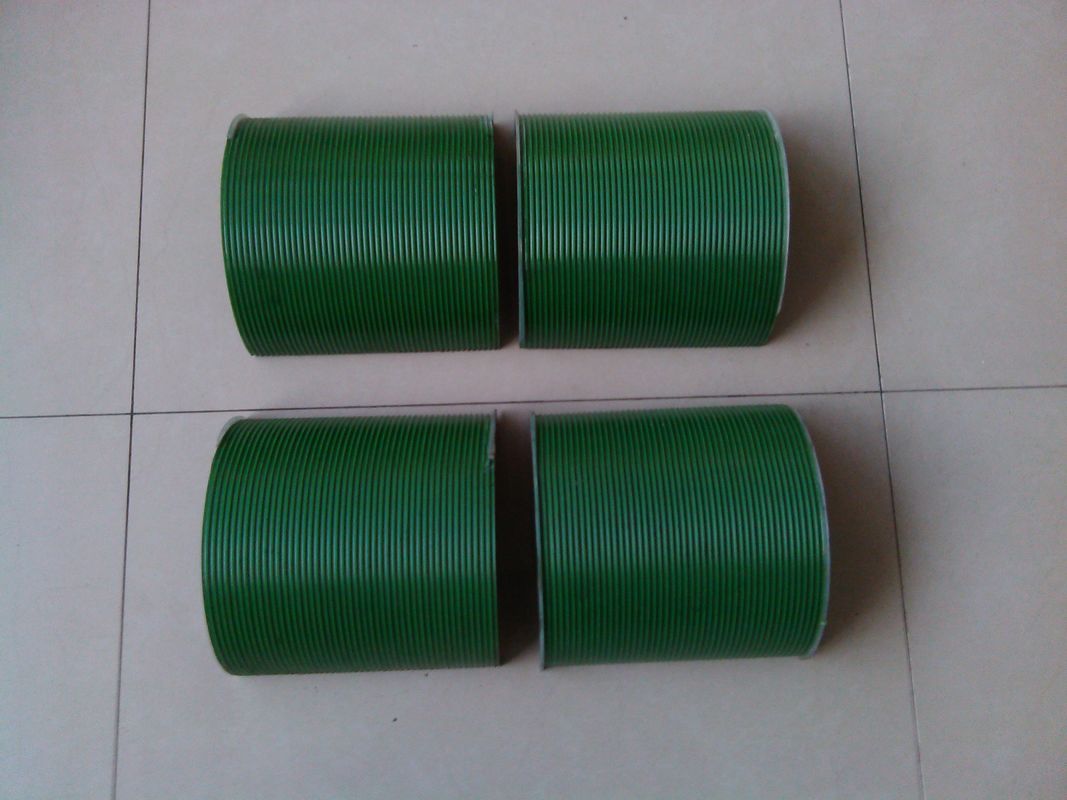

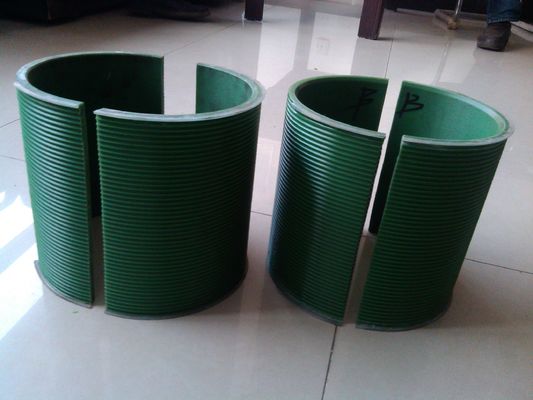

6mm Lebus Grooved Drum Sleeves High Polymer Color Sleeves For Winch





Polymer material

Polymer material has high strength, good plasticity, strong corrosion resistance, good insulation and light weight and other excellent properties. Polymer materials are generally divided into natural and synthetic two categories. Engineering polymer materials are usually divided into plastic, rubber and synthetic fiber according to their mechanical properties and service state.

Common poly resins are polyethylene (PE), polyvinyl chloride (PVC), polystyrene (PS), ABS resin, polyvinyl acetate (PVAC), polypropylene (PP) and poly methyl methacrylate (PMMA), etc. Polymer material generally has many advantages that can not be replaced by metal and inorganic materials. It is lighter, more stable and has stronger coloring power than metal materials. It is a high-quality material that can be used as LBS roller



Production Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the

drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope

construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch


Information required for quotation

In order to provide accurate quotation for LBS rope groove drum, the user shall provide the following parameters:

1. Company Name:

2. Contact person:

3. Contact Information: Mobile phone:

4. Email Address:

5. Drum diameter: mm

6. Width between flannels: mm

7. Diameter of wire rope or cable: mm

8. Reel material and requirements:

9. Maximum rope capacity of wire rope or cable: M

10. Position Angle of reel and fixed pulley:

11. Entry direction of wire rope or cable (LBS rope groove rotation) : left: right:

12. Flange diameter: mm

Maximum working load of wire rope or cable:

14. Whether to provide detailed drum drawings:

15. Rope way, through the flange or through the main barrel:

16. Other information and requirements:



TecHnical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8



3~10

Lefthand,Righthand

>160

<1000

2

10~16



12~20

Lefthand,Righthand

>320

<1000

3

18~24



20~80

Lefthand,Righthand

>480

<1000

4

26~32



100~120

Lefthand,Righthand

>640

<1000

5

34~40



150~200

Lefthand,Righthand

>800

<1000

6

42~50



240~400

Lefthand,Righthand

>1000

<1000



Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,



In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
