Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch

Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch
Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch

Large Image :  Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Product Name: Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves Material: High Polymer
Grooved Type: Lebus Grooved Surface Color: Gray
Connection Type: Welded Or Bolted Dia. Of Rope: 4~80mm
Layes: 2~15 Layes Used: Assembly Winch
Grooving Machine: CNC Machining Surface: Spray Zinc Rich Primer
High Light:

High Polymer lebus groove

,

lebus groove Sleeves

Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For Cable Winch





 Advantage of Lebus Grooved:

1,Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.

2,This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.

Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8



3~10

Lefthand,Righthand

>160

<1000

2

10~16



12~20

Lefthand,Righthand

>320

<1000

3

18~24



20~80

Lefthand,Righthand

>480

<1000

4

26~32



100~120

Lefthand,Righthand

>640

<1000

5

34~40



150~200

Lefthand,Righthand

>800

<1000

6

42~50



240~400

Lefthand,Righthand

>1000

<1000



Advantage of Drum Sleeves

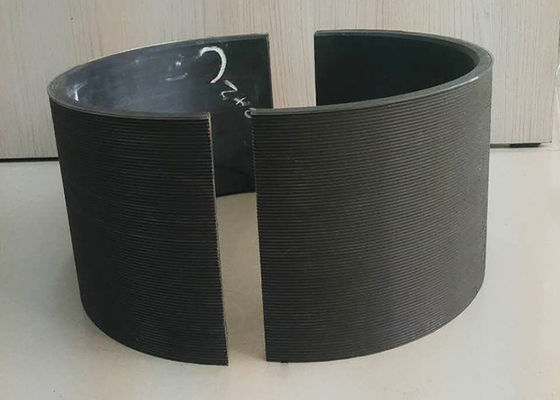

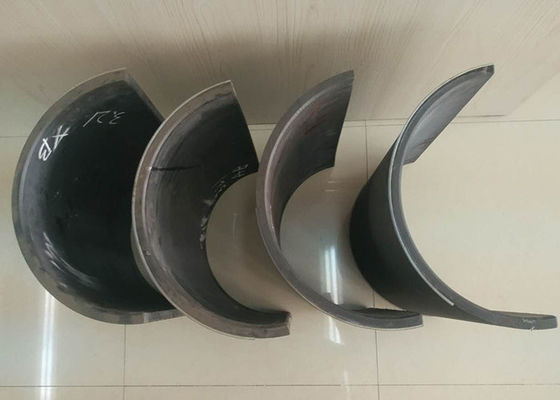

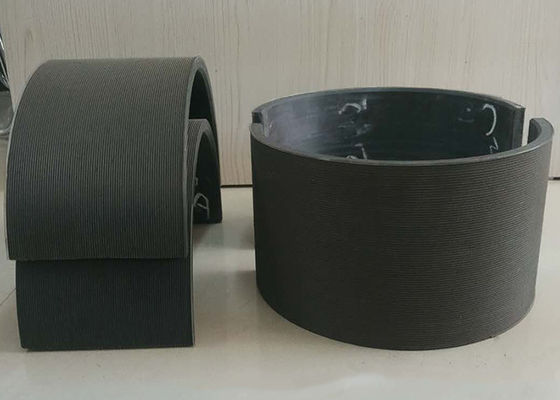

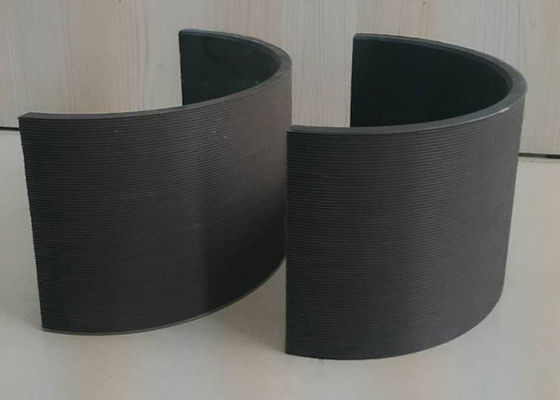

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.



LBS Drum required parameters

Sleeve Diameter of wire rope or cable

Diameter of smooth drum (inside diameter of rope groove)

Outer diameter of rope groove drum

Length between drum flanges

Rope capacity

Rope groove rotation (left or right)

LBS drum leather material required

Whether drawings or other requirements are provided



Production Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine



Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
