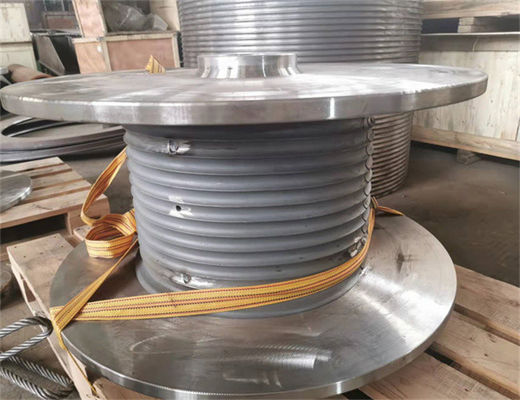

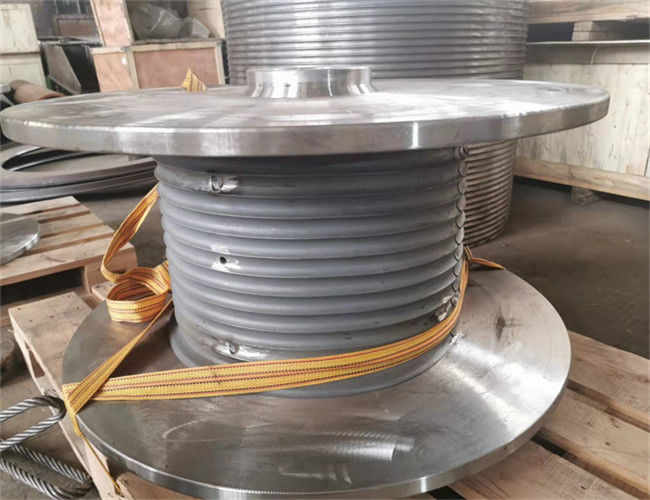

Product Name: | Groove Drums Sleeves | Material: | Carbon Steel |
---|---|---|---|
Grooved Type: | Lebus Grooved | Surface Color: | Gray |
Connection Type: | Welded Or Bolted | Dia. Of Rope: | 3~100mm |
Layes: | 2~20 Layes | Packing: | Fumigation-free Wooden Cases |
Grooving Machine: | CNC Machining | Surface: | Spray Zinc Rich Primer |
Highlight: | CCS Grooved Drum Sleeves,Carbon Steel Grooved Drum Sleeves |

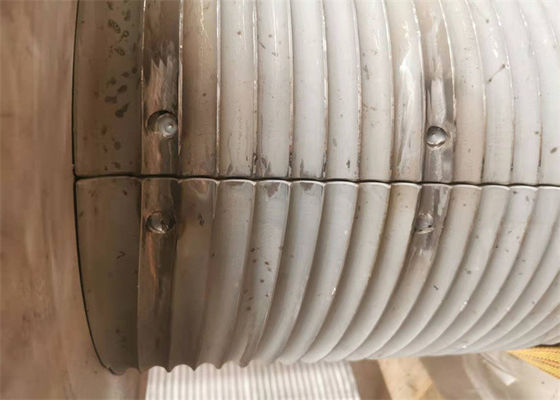

1,Sleeve Diameter of wire rope or cable
2,Diameter of smooth drum (inside diameter of rope groove)
3,Outer diameter of rope groove drum
4,Length between drum flanges
5,Rope capacity
6,Rope groove rotation (left or right)
7,LBS drum leather material required
8,Whether drawings or other requirements are provided

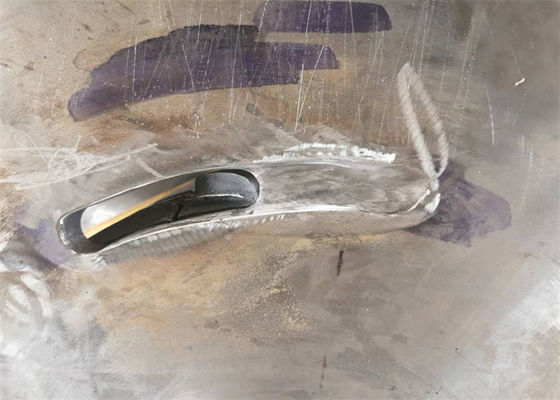

Conditions of LBS Grooved
LBS rope groove drum also requires certain operating conditions. The most important of these conditions is the deflection Angle of the wire rope, which is the Angle between the wire rope from the reel to the first fixed pulley. Generally speaking, this deflection Angle should not be greater than 1.5° and should not be less than 0.5°. There are some slight differences (about a 0.25° variation), but it is good to remember this general statistic. The optimal deflection Angle also depends on the load, cable structure and lifting speed. This deflection Angle indicates that for every 10m from the drum to the pulley, the distance between the wire rope and the midpoint of the drum should not be greater than 260mm (520mm between the two flanges). 9 Q2 ` 2 L! For LBS groove reels, if the deflection Angle exceeds the recommended range, a special rope called Angle compensator can be used to relax and be damaged by extruding or twisting of the outer wire rope onto the groove
No:
|
Wire diameter(mm)
|
Pulling Force(KN)
|
Rotation Direction
|
Drum Diameter(mm)
|
Drum Length(mm)
|
1
|
3~8
|
3~10
|
Lefthand,Righthand
|
>160
|
<1000
|
2
|
10~16
|
12~20
|
Lefthand,Righthand
|
>320
|
<1000
|
3
|
18~24
|
20~80
|
Lefthand,Righthand
|
>480
|
<1000
|
4
|
26~32
|
100~120
|
Lefthand,Righthand
|
>640
|
<1000
|
5
|
34~40
|
150~200
|
Lefthand,Righthand
|
>800
|
<1000
|
6
|
42~50
|
240~400
|
Lefthand,Righthand
|
>1000
|
<1000
|
