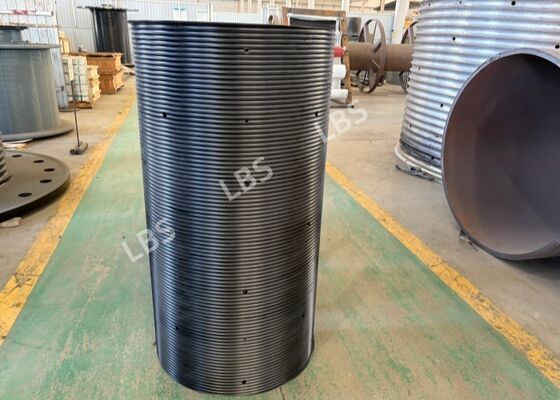

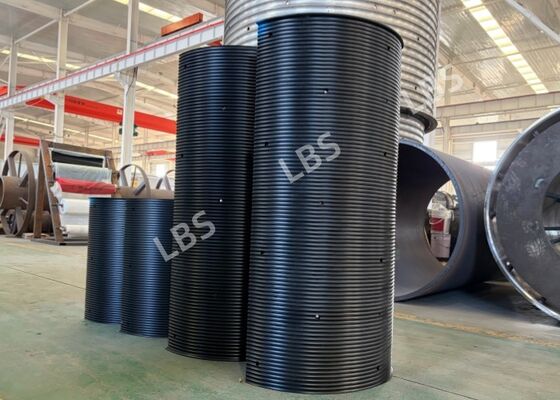

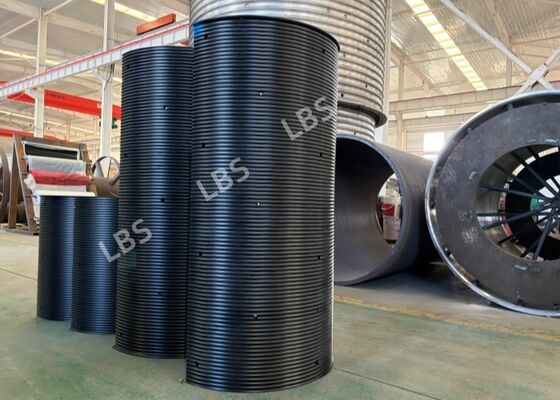

High Capacity 7000m Right Hand 45° Lebus Drum Sleeve, MC Nylon 25-Layer Spooling Liner for Φ14mm Wire Rope

1.Product Description

Model D660×1340-16 right-hand 45° Lebus drum sleeve is cast from MC nylon, manufactured as a split bolt-on liner. It features Lebus dual crossover grooves, designed for Φ14.18mm wire rope. The 45° crossover +135° parallel groove profile enables neat spooling up to 25 layers, with a large rope capacity of 7000 meters. It can be retrofitted onto existing bare drums without drum replacement. The precision groove guides wire rope smoothly, preventing rope crushing, tangling and overlapping. MC nylon offers self-lubrication and good seawater resistance, reducing wire rope wear and extending rope service life for long-storage offshore winches.

2.Product Parameter

3.Product Advantage

1. Extra-large 7000m rope storage, supporting up to 25 layers of orderly spooling
2. Professional RH 45° Lebus crossover groove for smooth layer transition, anti-crush & anti-tangle
3. Self-lubricating MC nylon, wear-resistant, seawater and oil resistant, well protects wire rope
4. Split bolt-on design, easy retrofitting on original drums, saving upgrade cost
5. One-piece formed groove and ramp, stable structure and consistent pitch under heavy load
6. Even load distribution, lower rope fatigue and higher operational safety in offshore environments

4.Product Application

Offshore subsea cable laying winches, offshore platform lifting winches, oilfield service winches, heavy pull winches, ROV handling winches and other heavy-duty winches requiring ultra-long rope storage and multi-layer ordered spooling.
