Bolted-on 60° Folded Lebus Grooved Double Drum for 24mm Wire Rope

1.Product Description

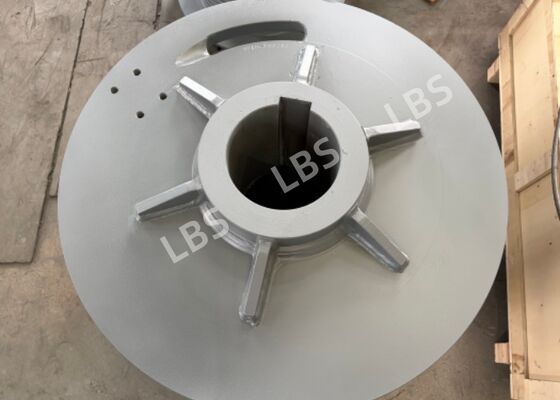

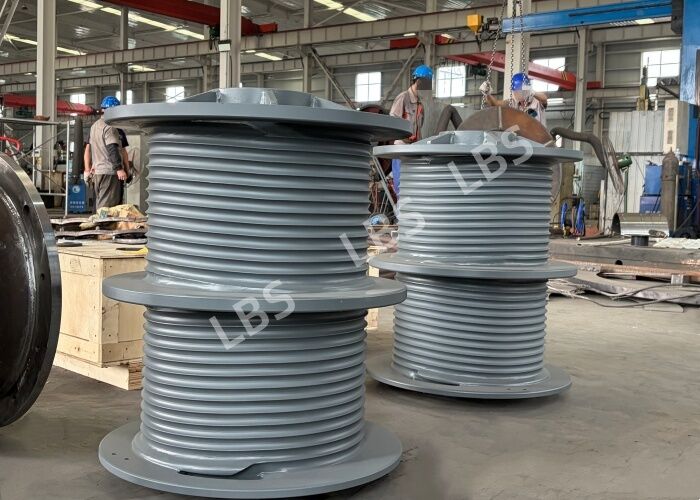

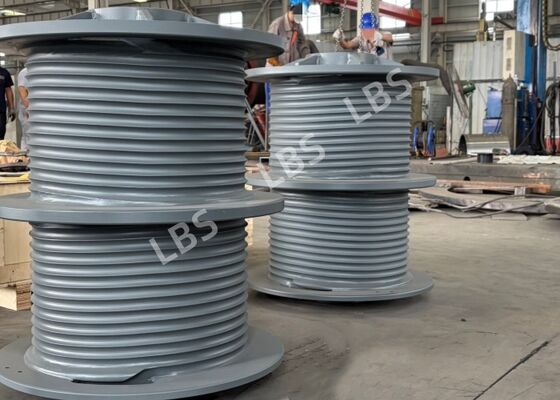

This is a Lebus grooved double drum manufactured from Q355D high-strength low-alloy steel. It features a split symmetrical double-groove structure with an overall drum length of 900±0.3 mm and an outer diameter of Φ710. It is equipped with 60° folded Lebus rope grooves. The left-hand and right-hand helical grooves are fully symmetrical: the left helix winds rope from left to right, while the right helix winds rope from right to left. There are 2 layers with 13.5 coils per layer and a starting angle of 0°, enabling orderly bidirectional spooling of steel wire rope.

The product adopts a welded assembly structure. For steel plates with thickness ≥12 mm, grooves are machined in compliance with welding standards GB985-88 and GB986-88. All sharp edges are deburred and rounded; welds are cleaned of slag and ground smooth. Precision-machined rope grooves ensure smooth winding of steel wire rope and reduce risks of rope crushing, biting and disordered spooling. Mounting bolt holes are arranged on flanges at both ends for direct assembly to winches and hoisting equipment, suitable for offshore and construction machinery hoisting working conditions.

2.Product Parameter

3.Product Advantage

(1) 60° Folded Lebus Rope Groove Design: Symmetrical left & right helical grooves guide neat multi-layer winding of steel wire rope, preventing rope crushing, jumping and biting, greatly extending wire rope service life and lowering maintenance costs.

(2) High-strength Material: Q355D high-strength low-alloy steel delivers excellent low-temperature impact performance, fatigue resistance and load-bearing capacity, ideal for heavy-load and marine corrosive environments.

(3) Precision Symmetrical Helical Structure: Fully symmetrical left and right helix with 0° starting angle ensures synchronized and stable bidirectional rope spooling, balanced load on both ends of the drum and smoother winch operation.

(4) Mature Welding Technology: Thick plates are grooved per national welding specifications, with ground welds. High welding strength and resistance to alternating loads guarantee robust and reliable overall structure.

(5) Precision Machining: Critical dimensions are controlled within tight tolerances. Geometric tolerances of flanges and inner bore meet requirements, delivering high assembly accuracy and good installation concentricity to reduce equipment vibration.

(6) Optimized Surface Finishing: Deburred and rounded sharp edges plus polished welds eliminate stress concentration and prevent wire rope cutting damage.

4.Application Scenarios

It is mainly used in offshore engineering heavy lifting equipment including offshore platform cranes, marine deck winches, offshore oil & gas drilling platforms, vessel lifting equipment and floating crane winch systems. It is also applicable to heavy port cranes and mining winches.
