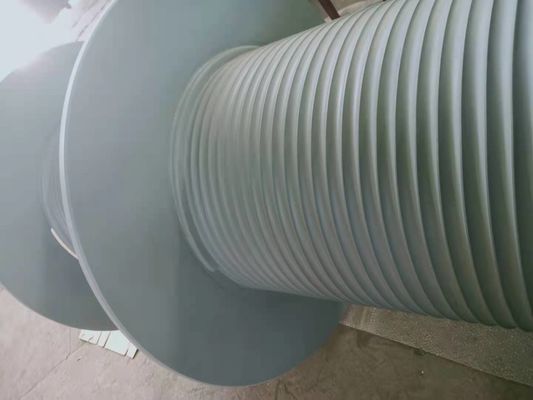

LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch

LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch
LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch

Large Image :  LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Pieces Per Month
Detailed Product Description
Product Name: Rope Winch LBS Grooved Single Or Double Drum Material: Steel Q345B And Steel 45#
Layers: 5 Layer Rope Groove Type: Lebus Groove
Color: Primer Grey Rope Diameter: 35mm
Power Source: Hydraulic Capacity: 300KN(Resultant Force)
Type: Single Or Double Drum Drum Direction: One Lefthand And One Righthand
High Light:

Spooling Rope Winch Drum

,

Multilayer Rope Winch Drum

,

LBS winch drum parts

Multilayer Spooling Rope Winch LBS Grooved Single Or Double Drum







Customization requirements

1. what is your order quantity?
2. what is the drum capacity?
3. drum diameter?
4. rope diameter?
5. direction of wire rope entry?
6. width between the flanges?





Product rapid customization:

Material Stainless steel carbon steel nylon
width between the flanges 100mm-2000mm
drum diameter 100mm-1100mm
wire rope diameter 3mm-198mm
Rope capacity 30m-10000m
The outside diameter of flanges based on your rope capacity
rotation direction left or right
drum type single or double more



Some customized product parameters for your reference:

rotation direction layers drum capacity drum diameter drum outer diameter Width between the flanges rope diameter
lefthand 3 30m 300mm 320mm 350mm 6mm
lefthand 4 150m 450mm 470mm 565mm 6.5mm
righthand 5 200m 600mm 630mm 780mm 11mm
righthand 8 300m 800mm 830mm 1100mm 13mm



Product installation

The customer can choose weld type or bolted type.



LBS grooved drum

The intergrated LBS grooved drum: directly processing LBS groove on smooth drum.

Refering to the drum’s flange, the customer can choose to welding theflanges or bolted.



Product parameter

Rotation direction: left or right

Processing method:steel plate rolling

Diameter range of wire rope:3mm-190mm

Rope capacity: 10m-10000m

Processing equipment:cnc machining center

Color: as your require



Packing details of winch drum:

MOQ: 1 set

Port: Tianjin, Qingdao and Shanghai port in China

Package: Main body is packed in high quality plywood box



Warranty:

Warranty: the quality of our winch drum is guaranteed for one year, in this period, if any quality problem happens with correct operation, we will send spare parts to you free of charge.

After warranty, we will supply spare parts at cost prices to you.



Processing Technic


LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch 0



Product Drawing


LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch 1





Product Application



DIAMETER OF WIRE ROPE 35mm RESULTANT FORCE 300KN
LAYERS LAYERS ROPE LENGTH 400M*2
GROOVE TYPE LEBUS THE DIRECTION RIGHT AND LEFT
NUMBER OF GROOVES 25*2 OVERALL DIMENSIONS 2000*1500*1500MM
SECURITY LAYER 2.5 LAYERS WEIGHT 3.5T



Product  Details



The rope winch drum includes: winding drum core, flange, brake drum, clutch, pressing plate and shaft sleeve, etc

LBS Multilayer Spooling Rope Winch Drum Parts For Single Double Drum Winch 2
