High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting

High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting
High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting

Large Image :  High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Pieces Per Month
Detailed Product Description
Product Name: Two Ropes Double Winch Drum Material: Q355D
Layers: 5 Layer Rope Groove Type: Lebus Groove
Color: Primer Grey Rope Diameter: 35mm
Power Source: Hydraulic Capacity: 300KN(Resultant Force)
Type: Double Drum Drum Direction: One Lefthand And One Righthand
High Light:

300KN Rope Winch Drum

,

35mm Rope Winch Drum

,

300KN winch spare parts

Marine Ship Lebus Groove Two Ropes Double Winch Drum For Deck Lifting





Product Description



Drum is one of the important parts of the crane,it is used to wind the wire rope in the lifting mechanism or traction mechanism, the driving force provided by the driving device to the wire rope, and the rotary movement of the driving device into the required linear movement.

The drum used on the crane is mostly cylindrical. At both ends of the drum, most of the plate support, a hole in the middle of the plate, there is a shaft in the middle, the shaft is divided into two kinds, one is through the long shaft, the other is a short shaft at both ends of the drum.

Drum according to the number of rope winding layer, divided into single layer winding and multi-layer winding two. The rope groove increases the contact area of the wire rope, ensures the orderly arrangement of the wire rope, prevents mutual friction, and improves the service life of the wire rope. generally, the spiral rope groove is used for single-layer winding, and the lebus rope groove is used for multi-layer winding.



Processing Technic

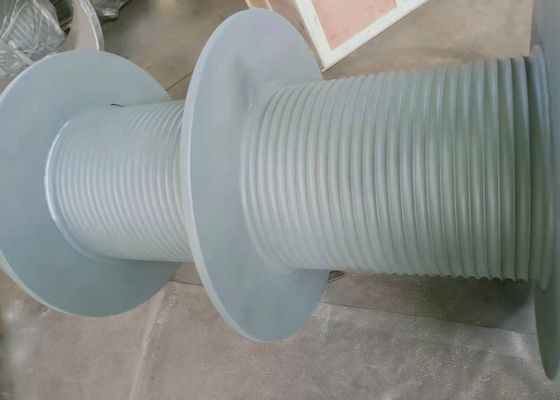

High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting 0



Product Application

DIAMETER OF WIRE ROPE 35mm RESULTANT FORCE 300KN
LAYERS LAYERS ROPE LENGTH 400M*2
GROOVE TYPE LEBUS THE DIRECTION RIGHT AND LEFT
NUMBER OF GROOVES 25*2 OVERALL DIMENSIONS 2000*1500*1500MM
SECURITY LAYER 2.5 LAYERS WEIGHT 3.5T



Product Drawing

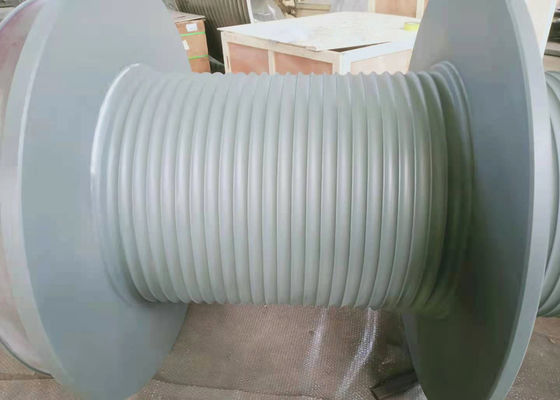

High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting 1



Product  Application

Winch drum is used in metallurgy, Marine engineering, mining, railway, military industry, aerospace, urban construction and other places.

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch.

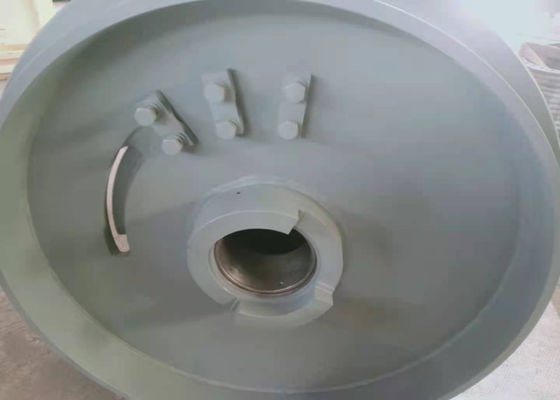

High Capacity 300KN 35mm Rope Winch Drum, Winch Spare Parts For Deck Lifting 2
