LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

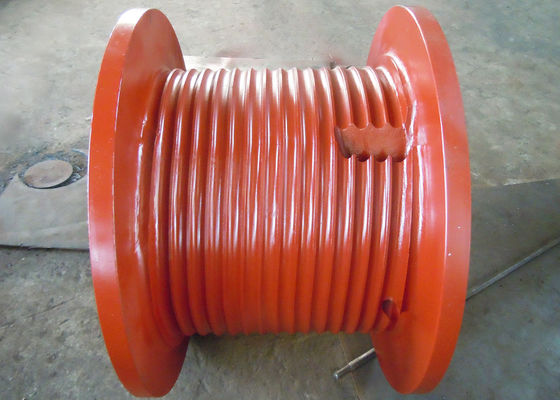

LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining

LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining
LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining

Large Image :  LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: after advance one month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Pieces Per Month
Detailed Product Description
Product Name: Wire Rope Hoist Drum Material: Carbon Steel And Stainless Steel
Rope Groove Type: Lbs Grooves Color: Primer Grey
Rope Diameter: 36mm Power Source: Hydraulic Motor
Capacity: 160KN Construction: Weldment
Brake: Independent Hydraulic Brake Lifting Method: Vertical Or Horizontal
Highlight:

multifunctional Rope Winch Drum

,

160KN Rope Winch Drum

,

160KN metal winch drum

 Extended Wire Rope Hoist Drum cable winch drum for Lift objec



Product Parameter



If customized,pls confirm the following details:
1. Is the winch for lifting vertically or drag horizontal?
2. What is the pulling force of single rope(KN)?
3. Single drum or double drum or other?
4. What is the drum capacity(m)?
5. Is there any requirements on rope entrance and groove type?
6. Pls let us know the rope construction rope diameter?
7. The connection mode between the drum and the bracket?
8. The connection mode of shafts?
9. Other Special requirements?

Product Details



The wire rope hoist drum includes: drum core, flange, brake disc, clutch, Rope pressing plate,locating pin and connecting sleeve, etc
Drum material: various low alloy high strength structural steels,(GB/T1591-2018) Q355B/C/D/E,Q390B/D/E,Q420B/D/E,etc.

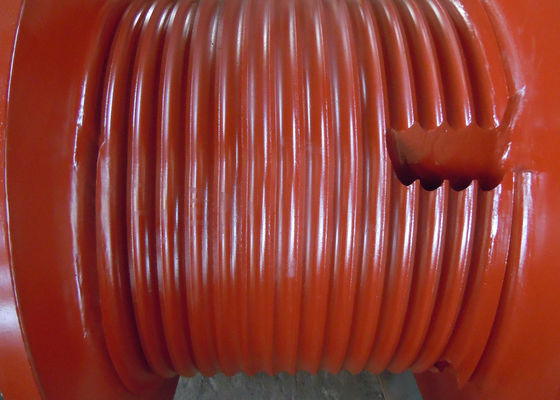

Drum groove type: Double broken line rope groove,two broken line grooves and two parallel grooves on one circumference.

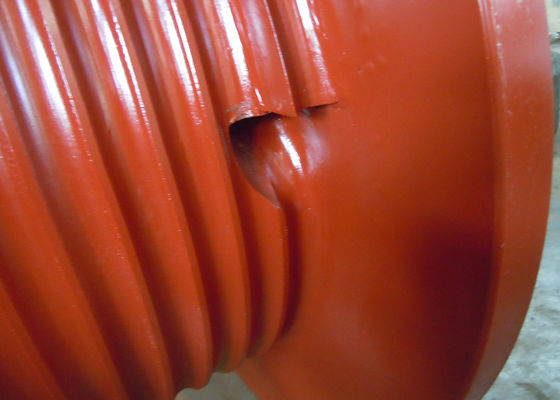

Rope entry mode: rope entry from flange side.

Drive type: hydraulic motor.

Processing Technic


LBS Multifunctional 160KN Rope Winch Drum , Metal Winch Drum Red Color For Mining 0



Product Application



DIAMETER OF WIRE ROPE 35mm RESULTANT FORCE 300KN
LAYERS LAYERS ROPE LENGTH 400M*2
GROOVE TYPE LEBUS THE DIRECTION RIGHT AND LEFT
NUMBER OF GROOVES 25*2 OVERALL DIMENSIONS 2000*1500*1500MM
SECURITY LAYER 2.5 LAYERS WEIGHT 3.5T
