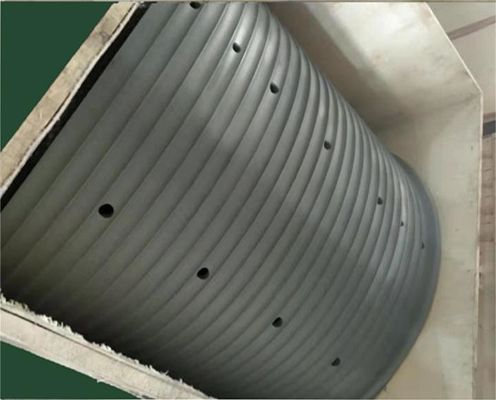

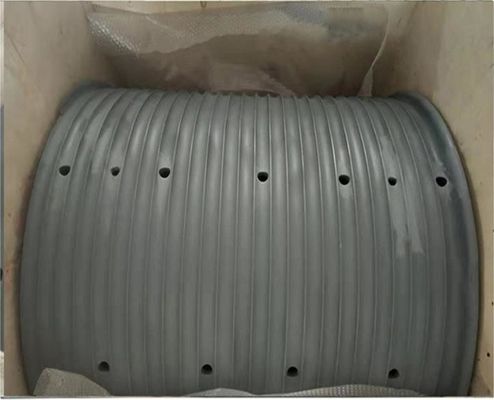

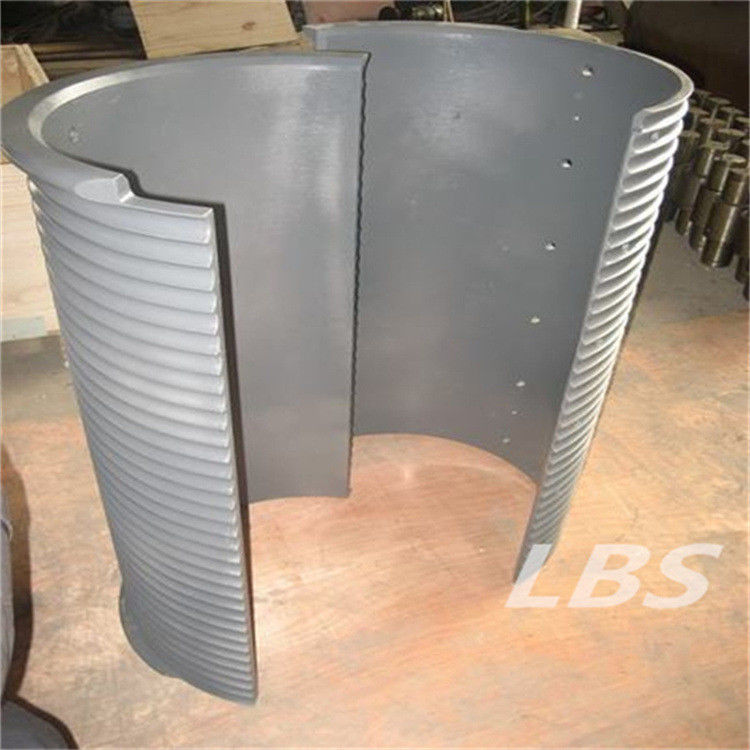

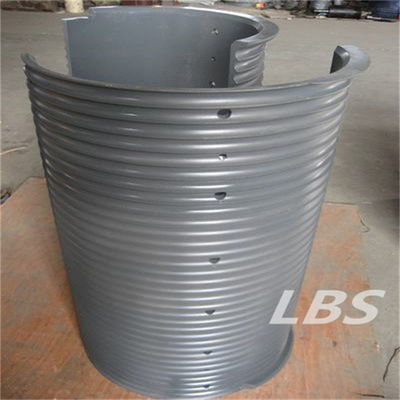

Alloy Steel Lebus Grooved Sleeves Non Standard Design

Alloy Steel Lebus Grooved Sleeves Non Standard Design
Alloy Steel Lebus Grooved Sleeves Non Standard Design Alloy Steel Lebus Grooved Sleeves Non Standard Design Alloy Steel Lebus Grooved Sleeves Non Standard Design Alloy Steel Lebus Grooved Sleeves Non Standard Design

Large Image :  Alloy Steel Lebus Grooved Sleeves Non Standard Design

Product Details:
Place of Origin: China
Brand Name: LBS
Certification: ISO9001/CCS
Model Number: LBSS-Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Export Standard Wooden Case Or Pallet
Delivery Time: 15-30 days
Payment Terms: T/T, L/C, Etc
Supply Ability: 100PCS
Detailed Product Description
Drum Sleeve Type: Lebus Grooved Sleeves Length: Customized
Drum Type: Smooth Color: Customized
Drum Surface Finish: Polished Name: Lebus Grooved Sleeves
Sleeves Diameter: 20mm~2000mm Drum Sleeve Material: Steel
Material: Alloy Steel, Carbon Steel, Polymer Nylon, Etc Function: Multi Layer Winding Storage Rope
High Light:

alloy steel lebus grooved sleeves

,

non standard lebus grooved sleeves

,

lebus grooved drum sleeves

non standard design of split lbs rope groove plate drum skin

Product Description:

Lebus Grooved Sleeves are designed for winch drums and are a type of split sleeve with lebus grooves. They are available in a wide range of diameters, from 20mm to 2000mm, and can be customized for non-standard drum sizes. The drum surface finishing is polished for an aesthetically pleasing look, making them suitable for a variety of lifting or traction applications. The lebus grooved sleeves have been designed for superior performance and reliability and are capable of withstanding even the toughest conditions. With the added benefit of being lightweight and easy to install, these grooved sleeves are the perfect solution for any industrial or commercial needs.

Alloy Steel Lebus Grooved Sleeves Non Standard Design 0

Features:

  • Product Name: Grooved Drum Sleeves
  • Rope capacity: 30m~1000m
  • Drum sleeve type: Lebus Grooved
  • Connection method: Bolted Or Welded
  • Application: Lifting Or Traction
  • NO. of layers: 80
  • Highlight: Lebus spooling system, winch drum with sleeves, drums with grooved sleeves


Technical Parameters:

Product Basic Parameters(Specific specifications can be customized according to requirements)
Product Name Grooved Sleeves Type Specification LBSS-202309001
Brand LBS Producing Area Shijiazhuang, Hebei, China
Production Facility CNC Center Certification ISO9001
Function Lifting and discharging of steel wire ropes Quality Assurance 1 year
Color Customized MOQ 1 pcs
Material Alloy steel (Customized) Processing Method Machining operation
Rope Groove Type Lebus or spiral Rope Capacity 10-10000m
Rope Type 3-100mm Power Source Electric motor / Hydraulic motor
Rope Entry Direction Left or right Accessory Products Lifting structure
Applicable Equipment Winch drum, smooth drum Weight 500kg
Specific specifications can be discussed. Welcome to the news consultation!

Applications:

LBS's LBSS-Series Grooved Drum Sleeves are made of steel material and have a special Lebus groove pattern, helping to provide a secure connection for various applications. This series of drum sleeves has 80 layers and a customized color that can be tailored to fit your specific needs. The connection method can either be bolted or welded, and each sleeve is certified with an ISO9001/CCS. With its Lebus spooling system, the LBSS-Series Grooved Drum Sleeves provide a reliable and safe connection for a variety of applications. The minimum order quantity is 1 PCS, and the price is negotiable. The packaging is available in either an export standard wooden case or pallet, and delivery time is 15-30 days. Payment terms are available via T/T, L/C, etc. and 100PCS can be supplied per order.

Number Rope Diameter(mm) Rotation Direction Drum Diameter(mm) Drum Length(mm) Application
1 13 Left 430 763 Oil Workover Rig And Oil Truck Drum
2 18 Left 623 1144 Oil Workover Rig And Oil Truck Drum
3 22 26 Left or Right 730 1120 Drilling Rig
4 18 22 32 Left or Right 670 1240 Windlass
5 28 32 36 Left or Right 560 630 Construction Machinery Rotary Drilling Rigs And Cranes
6 26 45 Left or Right 760 1146 1970 1765 Ocean Cranes, Docks
...

Alloy Steel Lebus Grooved Sleeves Non Standard Design 1

Customization:

Customized Grooved Drum Sleeves

Lebus Grooved Sleeves, Brand Name: LBS, Model Number: LBSS-Series, is a spooling system specifically designed for lifting or traction. With a minimum order quantity of 1 PCS, the product is certified with ISO9001/CCS and the price is open for negotiation. The product’s packaging details are in accordance with the Export Standard Wooden Case or Pallet and delivery time is within 15-30 days.

The product is capable of having up to 80 layers with a rope capacity of 30m~1000m and the sleeves diameter ranges from 20mm~2000mm. We have 100PCS in supply and accept payment in T/T, L/C, etc. We provide specialized grooved drums for the spooling system, making it an excellent choice for drums with grooved sleeves.



Support and Services:

Grooved Drum Sleeves Technical Support and Service

We offer comprehensive technical support and service for our Grooved Drum Sleeves. Our dedicated team of professionals can provide you with the best solutions to your problems and help you get the most out of your product.

Our team is available to answer any questions you may have about the product. We can also provide advice on installation and maintenance, as well as troubleshooting and diagnosing any issues you may be experiencing. We are also able to provide custom solutions for specific needs.

For more information about our Grooved Drum Sleeves, please contact us. We look forward to hearing from you and helping you get the most out of your product.



Packing and Shipping:

Packaging and Shipping for Grooved Drum Sleeves

Grooved drum sleeves are packaged in cardboard boxes to ensure the product is not damaged in transit. The boxes are designed to fit the product perfectly, ensuring the product remains secure during shipping.

The boxes are then placed inside a corrugated shipping box. The shipping boxes are marked with the appropriate shipping labels and are ready for delivery. Once the product is ready to be shipped, it is taken to a local shipping company and sent out to the customer.

Once the product arrives at the customer's location, it is inspected for any damage or defects. If any issues are found, the customer is notified and the product is replaced or repaired if necessary.



FAQ:

Q1: What is the brand name of Grooved Drum Sleeves?
A1: The brand name of Grooved Drum Sleeves is LBS.
Q2: What is the model number of Grooved Drum Sleeves?
A2: The model number of Grooved Drum Sleeves is LBSS-Series.
Q3: Where is Grooved Drum Sleeves produced?
A3: Grooved Drum Sleeves is produced in China.
Q4: What is the minimum order quantity for Grooved Drum Sleeves?
A4: The minimum order quantity for Grooved Drum Sleeves is 1 PCS.
Q5: What is the payment terms for Grooved Drum Sleeves?
A5: The payment terms for Grooved Drum Sleeves is T/T, L/C, etc.
