240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction

240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction
240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction

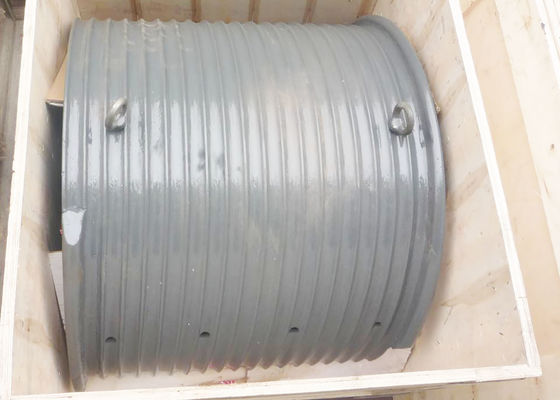

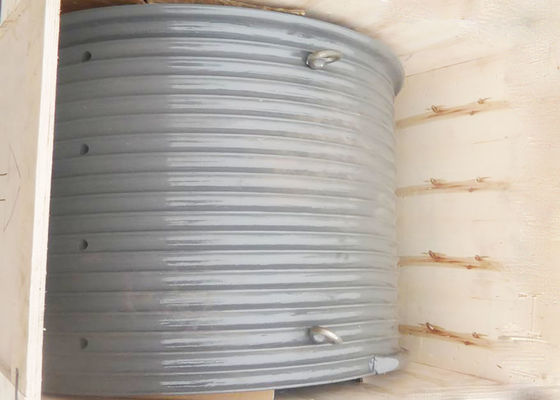

Large Image :  240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Q235/Q355B/Q355D/Q355E Product Name: Winch Drum With Grooved Sleeves Sleeves
Grooved Type: Lebus Grooved Surface Color: Gray
Connection Type: Welded Or Bolted Dia. Of Rope: 2~100mm
Layes: 2~20 Layes Used: Assembly Winch
Grooving Machine: Mining Machining Surface: Spray Zinc Rich Primer
Warranty: 12 Months Third Party Inspection: Available
High Light:

240KN Grooved Drum Sleeves

,

1000mm Grooved Drum Sleeves

240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction





Grooved Drum Sleeves Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Technical Parameters

No:
Wire diameter(mm)
Pulling Force(KN)
Rotation Direction
Drum Diameter(mm)
Drum Length(mm)
1
3~8

3~10
Lefthand,Righthand
>160
<1000
2
10~16

12~20
Lefthand,Righthand
>320
<1000
3
18~24

20~80
Lefthand,Righthand
>480
<1000
4
26~32

100~120
Lefthand,Righthand
>640
<1000
5
34~40

150~200
Lefthand,Righthand
>800
<1000
6
42~50

240~400
Lefthand,Righthand
>1000
<1000



Conditions of LBS Grroved

LBS rope groove drum also requires certain operating conditions. The most important of these conditions is the deflection Angle of the wire rope, which is the Angle between the wire rope from the reel to the first fixed pulley. Generally speaking, this deflection Angle should not be greater than 1.5° and should not be less than 0.5°. There are some slight differences (about a 0.25° variation), but it is good to remember this general statistic. The optimal deflection Angle also depends on the load, cable structure and lifting speed. This deflection Angle indicates that for every 10m from the drum to the pulley, the distance between the wire rope and the midpoint of the drum should not be greater than 260mm (520mm between the two flanges). 9 Q2 ` 2 L! For LBS groove reels, if the deflection Angle exceeds the recommended range, a special rope called Angle compensator can be used to relax and be damaged by extruding or twisting of the outer wire rope onto the groove



Information required for quotation

In order to provide accurate quotation for LBS rope groove drum, the user shall provide the following parameters:

1. Company Name:

2. Contact person:

3. Contact Information: Mobile phone:

4. Email Address:

5. Drum diameter: mm

6. Width between flannels: mm

7. Diameter of wire rope or cable: mm

8. Reel material and requirements:

9. Maximum rope capacity of wire rope or cable: M

10. Position Angle of reel and fixed pulley:

11. Entry direction of wire rope or cable (LBS rope groove rotation) : left: right:

12. Flange diameter: mm

Maximum working load of wire rope or cable:

14. Whether to provide detailed drum drawings:

15. Rope way, through the flange or through the main barrel:

16. Other information and requirements:



Lebus Grroved Drum Winch Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch


Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.

240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 0240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 1240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 2240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 3240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 4240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 5240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 6240KN Winch Drum With Grooved Sleeves Sleeves 1000mm Diameter For Construction 7
