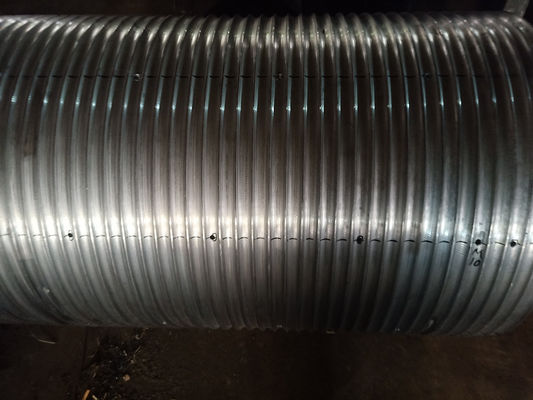

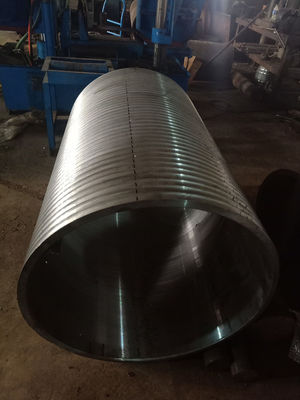

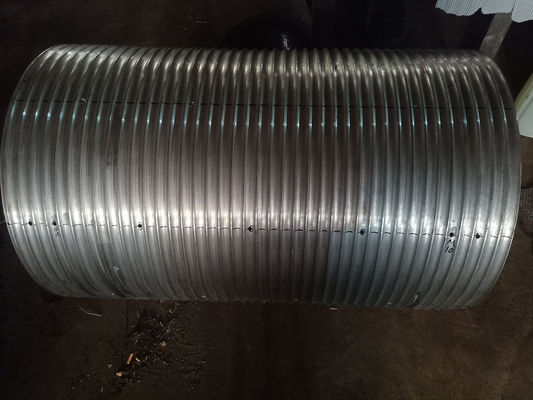

Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes

Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes
Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes

Large Image :  Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ISO9001
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case Or Pallet
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Pieces Per Month
Detailed Product Description
Features: Winds Smoothly Without Biting The Rope Product Name: Grooved Drum Sleeves
Key Words: Grooved Winch Drum, Gearmatic Winch, Multi-layer Drum Rope Type: Steel Wire Rope Or Nylon Rope
Material: S355JR/A709Gr50 Direction: Lefthand OR Righthand
Surface Treatment: Polishing, Painting, Galvanizing Layers: 1-50
Rope Diameter: 10-80mm Color: Customized
Highlight:

lbs grooved drum

,

geometry grooved drum

Components For Winding And Storing Steel Wire Ropes LBS Grooved Geometry Drum Leather Split Type

Product Description:

The LBS double line rope groove is composed of a straight rope groove and a diagonal rope groove within each circle of the drum, and the position of the straight rope groove and diagonal rope groove in each circle is exactly the same. When the steel wire rope is wound in multiple layers, the diagonal groove is used to fix the position of the transition point between the upper and lower steel wire ropes, so that the intersection of the upper steel wire rope is completed in the diagonal section. In the straight rope groove section, the upper steel wire rope completely falls into the groove formed by the two lower steel wire ropes, forming line contact between the ropes, ensuring stable contact between the upper and lower steel wire ropes. When returning the rope, cooperate with the stepped retaining rings with return flanges at both ends of the drum to guide the steel wire rope to climb smoothly and return, avoiding the disorderly rope caused by mutual cutting and squeezing of the steel wire rope, so that the steel wire rope is arranged neatly and smoothly transitioned to the previous layer, achieving multi-layer winding.

Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes 0Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes 1

Features:

LBS folding rope groove solves the major problem of disorderly rope and rope biting during the winding process of steel wire ropes. The folded wire rope groove makes the winding of the steel wire rope smooth and the load evenly distributed between each layer. This technology greatly extends the service life of the steel wire rope, can extend the service life of the steel wire rope by more than 500%, reduce the damage of the steel wire rope, improve the safety of equipment operation, and reduce the Halting problem problem of mechanical equipment due to rope replacement.

Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes 2

Technical Parameters:


Product Basic Parameters(Specific specifications can be customized according to requirements)
Product Name Grooved Sleeve Type Specification LBSS-2308001
Brand LBS Producing Area Shijiazuhang, Hebei, China
Production Facility CNC Center Certification ISO9001
Function Winding, storing steel wire ropes and lifting heavy objects Application Lifting and hoisting
Color Customization MOQ 1 pcs
Material S355JR/A709Gr50 Construction Bolted connection
Rope Groove Type lebus Weight 74kg
Lifting Method Vertical Power Source Electric motor
Accessory Products Lifting structure of crane



Processing Technic:

Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes 3

Applications:

Grooved Drum Sleeves is a common and useful equipment in many fields, including construction, water conservancy projects, forestry, mines, wharves and more. It can be used for a variety of purposes, such as material lifting or flat dragging, and also as a supporting aspect of modern electronically controlled automatic operations.

Lbs Grooved Geometry Drum Leather Split Type Components For Winding Storing Steel Wire Ropes 4

Support and Services:

We offer a comprehensive technical support and service for our Grooved Drum Sleeves products. Our team of experienced professionals are always available to answer your questions and help you find the best solution for your application.

We provide a range of services including:

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum)
b. One year of warranty
c. The engineer can provide overseas service
d. Quick and responsible after-sales service
e. Very competitive price

If you need assistance with our Grooved Drum Sleeves  products, please contact us and we'll be more than happy to help.



Packing and Shipping:

Packaging and Shipping for Grooved Drum Sleeves:

  • Each Grooved Drum Sleeves is packed in a strong wooden boxes or pallets.
  • The box is labelled with the product details, such as the model number, and other relevant information.
  • We use reliable shipping providers to ensure that our Grooved Drum Sleeves reach their destination safely and on time.
