Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels

Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels
Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels

Large Image :  Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ISO9001
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Features: Winds Smoothly Without Biting The Rope Product Name: Grooved Drum Sleeves
Rope Diameter: 14mm±0.5mm Rope Type: Armored Steel Wire Towing Cable
Material: Polymer Nylon Material Standards: MC-GB/T13254-2017
Direction: Left 45° Weight: 74kg
Surface Treatment: Polishing, Painting, Galvanizing Layers: 1-50
Highlight:

steel wire rope winding grooved drum

,

marine vessels grooved drum

Steel Wire Rope Winding Grooved Geometry Drum Skin for Marine Vessels

Product Description:

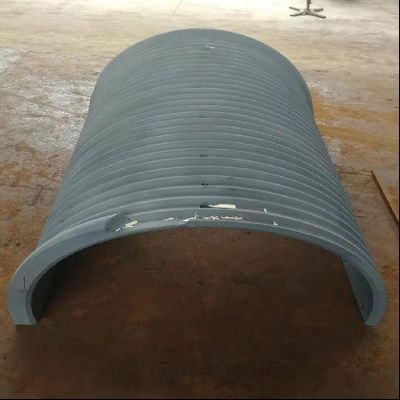

Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels 0

Features:

  • Product Name: Grooved Drum Sleeves
  • Groove Number: 121.5
  • Rope Capacity: 5-30 Tons
  • Rope Diameter: 14mm±0.5mm
  • Rope Length: 50-2000 M
  • Surface Treatment: Polishing, Painting, Galvanizing
  • Special Feature: LBS Grooved Drum Sleeve, Winch Drum Skin Grooving, LBS Grooved Drum Leather


Technical Parameters:


Product Basic Parameters(Specific specifications can be customized according to requirements)
Product Name Grooved Sleeve Type Specification LBSS-2308002
Brand LBS Producing Area Shijiazuhang, Hebei, China
Production Facility CNC Center Certification ISO9001
Function Winding, storing steel wire ropes and lifting heavy objects Application Open sea vessels
Color Black (Customization) MOQ 1 pcs
Material Polymer nylon Construction Bolted connection
Rope Groove Type lebus Weight 74kg
Lifting Method Vertical Power Source Electric motor
Accessory Products Lifting structure of crane



Product Technical Parameters(Specific specifications can be customized according to requirements)
Performance requirements for drawing design:
Material Polymer nylon Material Standards MC-GB/T13254-2017
Rope Diameter 14mm±0.5mm Rope Type Armored steel wire towing cable
Layers 33 Number of Coils Per Layer 121.5
Direction Left 45° Groove Bottom Diameter 600mm
Bottom Cable Pitch Diameter 614mm Rope groove pitch 14.38mm
Working Load ≥10kN
Environmental adaptability requirements:
Operation Temperature -28℃-+65℃ Storage Temperature -40℃-+69℃

Processing Technic:

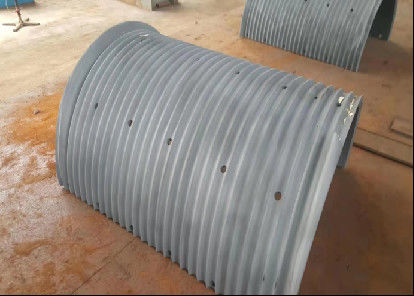

Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels 1

Applications:

Grooved Drum Sleeves is a common and useful equipment in many fields, including construction, water conservancy projects, forestry, mines, wharves and more. It can be used for a variety of purposes, such as material lifting or flat dragging, and also as a supporting aspect of modern electronically controlled automatic operations.

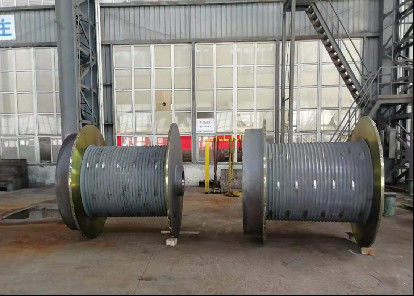

Steel Wire Rope Winding Grooved Geometry Drum Skin For Marine Vessels 2

Support and Services:

We offer a comprehensive technical support and service for our Grooved Drum Sleeves products. Our team of experienced professionals are always available to answer your questions and help you find the best solution for your application.

We provide a range of services including:

  • Installation and setup assistance
  • Troubleshooting and diagnostic support
  • Product usage and maintenance advice
  • Warranty and repair assistance
  • Training and education

If you need assistance with our Grooved Drum Sleeves  products, please contact us and we'll be more than happy to help.



Packing and Shipping:

Packaging and Shipping for Grooved Drum Sleeves:

  • Each Grooved Drum Sleeves is packed in a strong wooden boxes or pallets.
  • The box is labelled with the product details, such as the model number, and other relevant information.
  • We use reliable shipping providers to ensure that our Grooved Drum Sleeves reach their destination safely and on time.
