Product Details:
Payment & Shipping Terms:
|
| Product Name: | Grooved Drum Sleeves | Key Words: | Grooved Sleeve, Grooved Skin, Rope Groove Leather, Drum Groove Skin |
|---|---|---|---|
| Function: | Rope Winding And Rope Arrangement | Rope Length: | 1000m |
| Rope Type: | Steel Wire Rope, Synthetic Rope | Rope Diameters: | 36mm(+2%-+4%) |
| Layers: | 9 | Material: | S355J2+N/EN10025(1.0570) |
| Color: | Customizated | Drum Length: | Customizated |
| Highlight: | crane grooved drum sleeves,lbs grooved drum sleeves,marine wind power equipment drum sleeves |
||

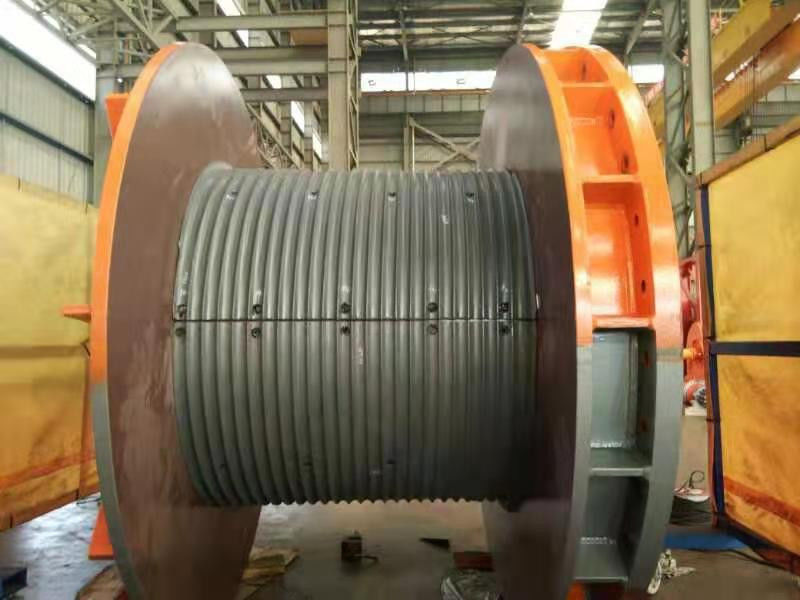

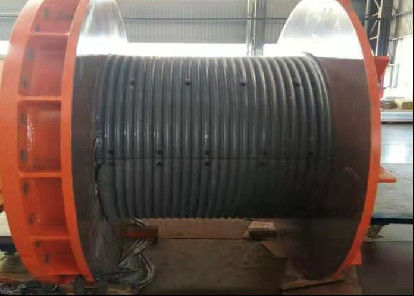

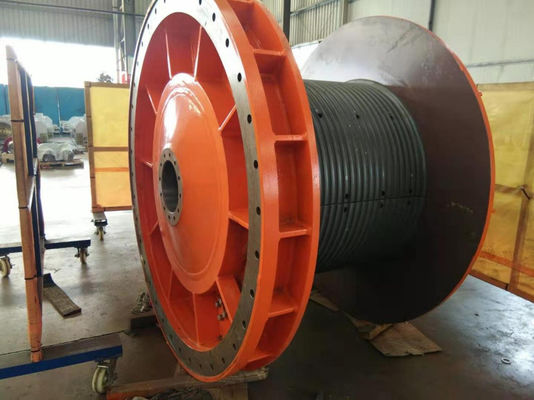

LBS system & LBS rope groove structure
| Product Basic Parameters(Specific specifications can be customized according to requirements) | |||
| Product Name | Grooved Sleeve | Type Specification | LBSS-2308004 |
| Brand | LBS | Producing Area | Shijiazuhang, Hebei, China |
| Production Facility | CNC Center | Certification | CCS |
| Function | Rope winding and rope arrangement | Application | Marine wind power installation crane |
| Color | Customization | MOQ | 1 pcs |
| Material | S355J2+N/EN10025(1.0570) | Construction | Weldment |
| Rope Groove Type | LBS double fold rope grooves | Rope Capacity | 1000m |
| Lifting Method | Vertical | Power Source | Electric motor |
| Product Technical Parameters(Specific specifications can be customized according to requirements) | |||
| Performance requirements for drawing design: | |||
| Material | S355J2+N/EN10025(1.0570) | Material Certification | V Impact,EN10204-3.1B, -20℃, min.27J |
| Rope Diameter | 36mm(+2%-+4%) | Rope Groove Bottom Diameter | 1000mm |
| Layers | 9 | Number of Rope Groove Turns | 27.5 |
| Outer Diameter | 970k12(+0.9/0)mm | Distance Between Inner Sides of Baffles | 1039.5(+0.2/-0.2)mm |
| Direction | Lefthand or righthand | ||
| Environmental adaptability requirements: | |||
| Ambient Temperature | -20℃-+45℃ | Design Temperature | -10℃ |
| Relative Humidity | ≤95% | Atmosphere Pressure | 0.1MPa |
a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b.The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc
We provide technical support and service for our products. Our team of experts is available to help you with product selection, installation, and maintenance. We can also assist with troubleshooting, problem solving, and repairs. Our technicians are knowledgeable and experienced and can provide advice on how to best use the product.
If you ever have any questions or concerns about your Grooved Drum Sleeves, our customer service representatives are available to help. We understand the importance of your product and strive to provide the best service and support possible. We are committed to ensuring that your Grooved Winch Drum operates properly and is providing the results you are expecting.
Contact us today and let us help you get the most out of your Grooved Drum Sleeves.
