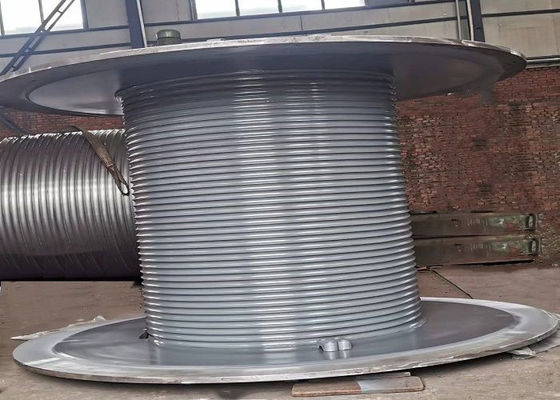

Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist

Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist
Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist

Large Image :  Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Lebus System Application: Crane / Winch / Hoist
Material: Steel Rope Capacity: 500M
Rope Groove Type: Lebus Grooves Warranty: 12Months
Weight: 500kgs Rope Diameter: 20mm
Drum Dia.: 800mm
High Light:

500M rope winch drum

,

rope winch drum Lebus System

Wire Rope Winding Winch Drum Lebus System For Crane / Winch / Hoist







Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Advantages of LEBUS GROOVE

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.


Technical Parameters
No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000





Product application:

a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc

b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc

c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc

d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc

e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc

f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc

Outline Structure Of Drawing



Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist 0



Processing Technic

Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist 1



Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist 2Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist 3Wire Winding 500M Rope Winch Drum Lebus System For Crane / Winch / Hoist 4
