Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame

Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame
Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame

Large Image :  Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Name: Drum Sleeves With Lebu Grooves Drum Lead: Left Or Right
Connection Type: Plug Welded Layers: 2~40 Layers
Structure: Two Halves Split Groove System: Special Half-integer
Material: Q355B/Q355D/Q355E
High Light:

Q355B Grooved Drum Sleeves

,

Plug Welded Grooved Drum Sleeves

,

Plug Welded lebus Sleeves

Crane Winch Drum Sleeves With Lebus Grooves Cut In Half With Flame



Product lookview:
GROOVING TYPE:

Crane Winch Drum Sleeves With Lebu Grooves Cut In Half With Flame

PRODUCT OTHER NAME groove sleeve
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVE ROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable
ROPE CAPACITY 20-1000M
PRODUCT OTHER NAME LBS groove drum or winch drum
GROOVING TYPE LBS groove
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVEROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable



Grooved Sleeves(Shell)

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral groove and lebus groove.

The split-sleeve depends on the drum’s size,wire rope diameter and length. The sleeves is composed of a sleeve cut in half, which can be fixed to a smooth drum by welding or bolted fastening. If we want to make a sleeve, we need only the drum size , wire rope size , and the number of winding layers, We can customize production based on this data.The scope of application is the same as that of lebus drum.



the complete drum with flanges,machine-finished
  • according to customers' requirements,the flanges are either welded or screw-bolted

  • the groove is cut directly into the body of the drum

  • the groove is available as either LBS-groove or helical-groove

  • groove geometry is determined by rope construction,diameter and length and by application.

  • the drum is provided with the requested mounting dimensions to the fit the flanges by welding or screw bolting.

some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Application field

In addition to being used for mining drilling, drilling, loading and other mechanical equipment power, more widely used in ships, offshore platforms, metallurgy, paper making and petrochemical industries.

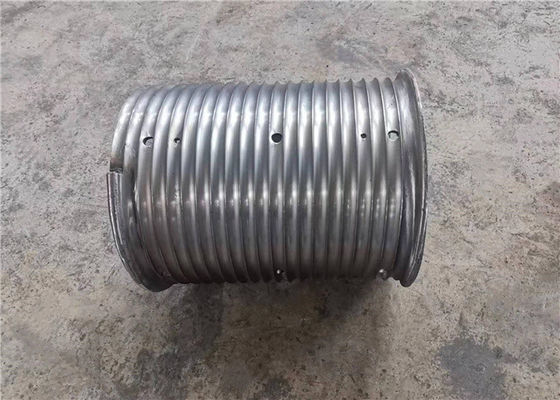

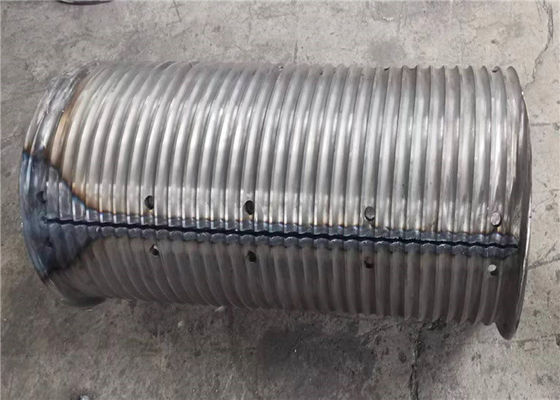

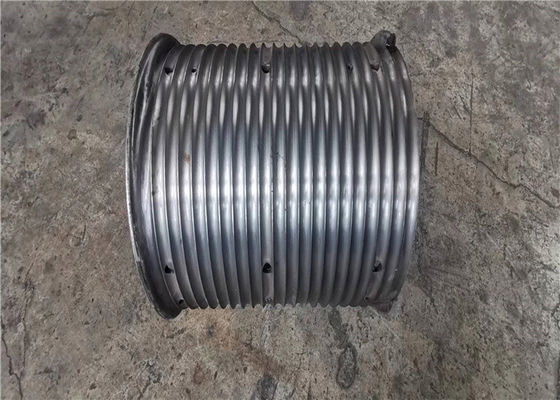

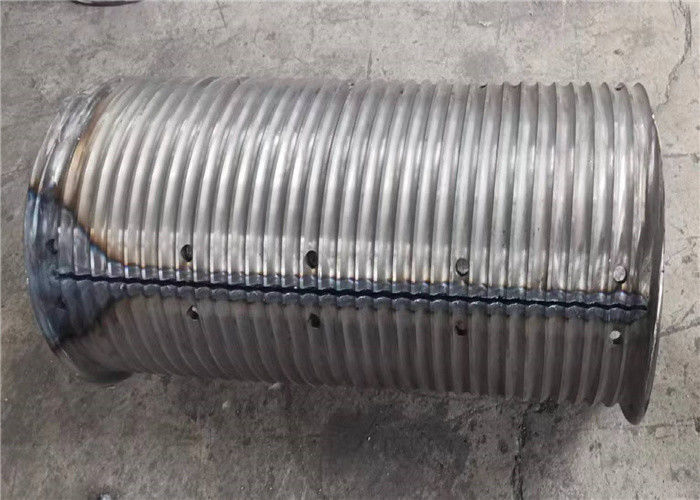

Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame 0Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame 1Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame 2Plug Welded Crane Q355B Lebus Grooved Drum Sleeves Cut In Half With Flame 3
