1860mm Crane Grooved Drum Sleeves Used To Winding Wire Rope Without Disorder

1860mm Crane Grooved Drum Sleeves Used To Winding Wire Rope Without Disorder
1860mm Crane Grooved Drum Sleeves Used To Winding Wire Rope Without Disorder 1860mm Crane Grooved Drum Sleeves Used To Winding Wire Rope Without Disorder 1860mm Crane Grooved Drum Sleeves Used To Winding Wire Rope Without Disorder

Large Image :  1860mm Crane Grooved Drum Sleeves Used To Winding Wire Rope Without Disorder

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Name: Lebus Grooved Drum Sleeves Grooved Type: Lebus Or Spiral Grooved
Connection Type: Plug Welded Or Bolted Layers: 2~40 Layers
Structure: Two Halves Split Sleeve Length: 1860mm
Material: Q355B Sleeve Diameter: 570mm
High Light:

Grooved Drum Sleeves Without Disorder

,

lebus sleeve Without Disorder

,

1860mm Grooved Drum Sleeves

Crane Drum Protective Sleeves Are Used To Winding Wire Rope Without Disorder





Grooved Sleeves(Shell)

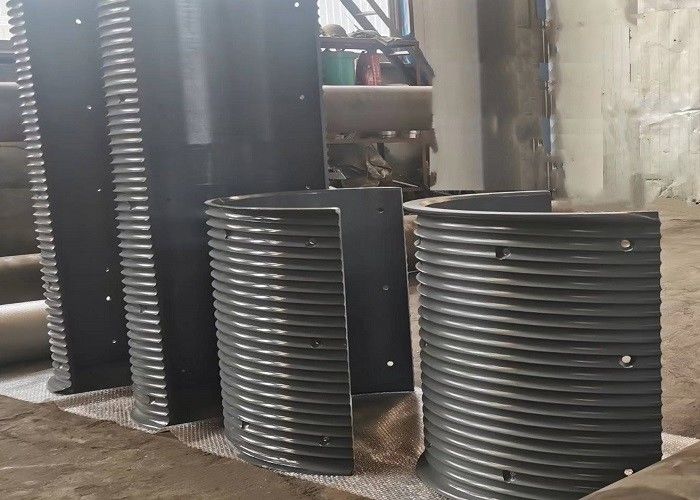

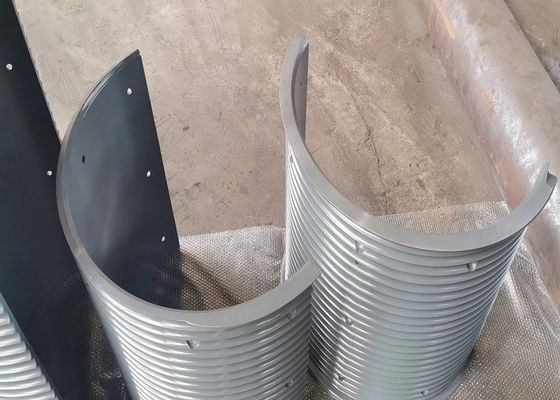

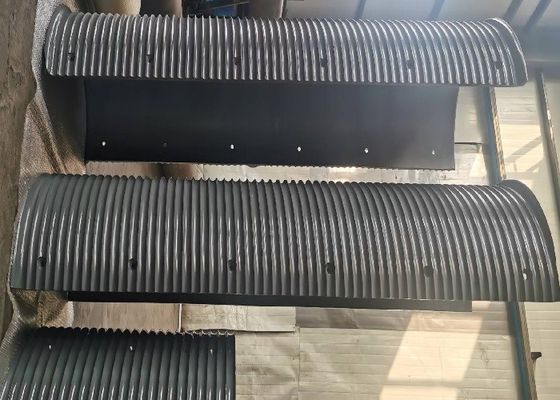

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral groove and lebus groove.

The split-sleeve depends on the drum’s size, wire rope diameter and length. The sleeve is composed of a sleeve cut in half, which can be fixed to a smooth drum by welding or bolted fastening. If we want to make a sleeve, we need only the drum size , wire rope size , and the number of winding layers, We can customize production based on this data. The scope of application is the same as that of lebus drum.



Successful cases

Our production of lebus grooved drum, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.



What is the welding process of steel sheet drum group?

Adopting plate blanking roll cylinder and weld longitudinal welds, checking longitudinal welds and geometric dimensions of cylinder (diameter, length, inner diameter ellipticity tolerance, etc.). For large diameter cylinder, adding welding process reinforcement and machining annular groove of cylinder. There are requirements for the process of roughing the cylinder outside the circle to process the outer circle, cylinder length welding (namely ring seam welding). For the two ends of the cylinder need to add welding process reinforcement according to the process regulations, and check the quality of ring welding and machining allowance, cylinder length processing and both ends of the stop or groove processing and welding cylinder end flange plate, shaft, inner support ring, etc.

some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Our Service

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b. One year of warranty.
c. The engineer can provide overseas service.
d. Quick and responsible after-sales service.
e. Very competitive price.
f. Before sending the goods, we will test and adjust, so you can use directly when you get it.
g. Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h. Any problems occur while using, professional advice will be offered.
i. All kinds of frequently used parts are supplied all the year round.
