Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes

Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes
Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes

Large Image :  Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Name: Lebus Grooved Drum Sleeves Grooved Type: Lebus Grooved
Connection Type: Plug Welded Dia. Of Rope: 24mm
Layers: 2~40 Layers Pitch: 25.2mm
Structure: Two Halves Split Material: Q355B
High Light:

Detachable Split Grooved Drum Sleeves

,

Detachable Split Lebus Sleeves

,

Lebus Sleeves 40 Layes

Detachable Split Lebus Grooved Drum Sleeves Carbon Steel Material

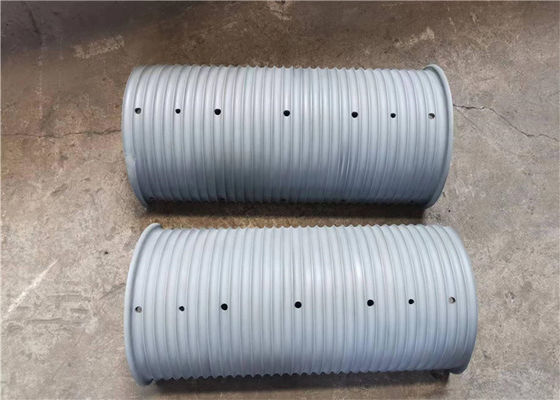

Grooved Sleeves(Shell)

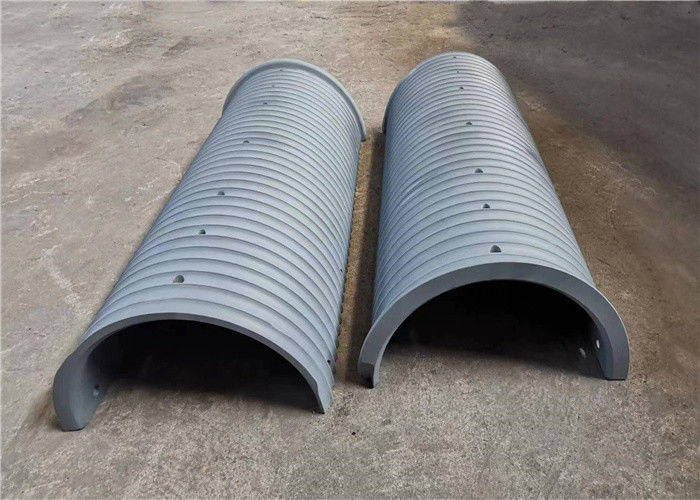

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral grooves and lebus grooves. The split-sleeve depends on the drum’s size, wire rope diameter and length. The sleeves is composed of a sleeve cut in half, which can be fixed to a smooth drum by welding or bolted fastening. If we want to make a sleeve, we need only the drum size , wire rope size , and the number of winding layers, We can customize production based on this data. The scope of application is the same as that of lebus drum.



Lebus sleeve Processing way

The rope groove system is formed into a sleeve with groove shape, also known as LEBUS sleeve. After finishing, it is cut into two pieces along the direction of 180 degrees, and finally welded with the drum body. This method can reduce machining time and improve machining efficiency. When the rope groove needs to be replaced for a long time, the outer sleeve can be replaced directly, saving 500% of the cost.



What is the welding process of steel sheet drum group?

Adopting plate blanking roll cylinder and weld longitudinal welds, checking longitudinal welds and geometric dimensions of cylinder (diameter, length, inner diameter ellipticity tolerance, etc.). For large diameter cylinder, adding welding process reinforcement and machining annular groove of cylinder. There are requirements for the process of roughing the cylinder outside the circle to process the outer circle, cylinder length welding (namely ring seam welding). For the two ends of the cylinder need to add welding process reinforcement according to the process regulations, and check the quality of ring welding and machining allowance, cylinder length processing and both ends of the stop or groove processing and welding cylinder end flange plate, shaft, inner support ring, etc.



some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Our Service

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b. One year of warranty.
c. The engineer can provide overseas service.
d. Quick and responsible after-sales service.
e. Very competitive price.
f. Before sending the goods, we will test and adjust, so you can use directly when you get it.
g. Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h. Any problems occur while using, professional advice will be offered.
i. All kinds of frequently used parts are supplied all the year round.



Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes 0Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes 1Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes 2Detachable Split Lebus Grooved Drum Sleeves Carbon Steel 2~40 Layes 3
