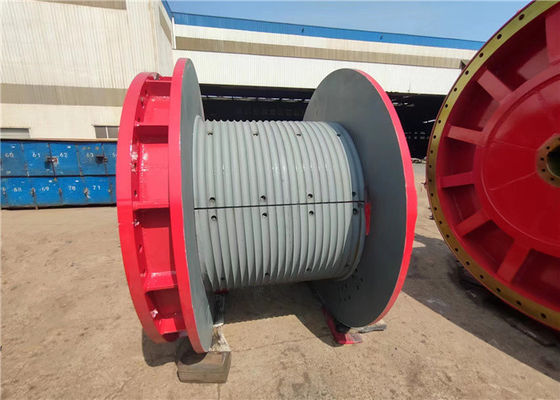

CCS Certification Q355B Q355E Lebus Grooved Drum For Marine Towing Winch

CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch
CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch

Large Image :  CCS Certification Q355B Q355E Lebus Grooved Drum For Marine Towing Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Product Name: Lebus Grooved System Grooved Type: Lebus Grooved
Connection Type: Plug Welding Or Bolted Connection Dia. Of Rope: 30mm
Layes: 2~40 Layes Warranty: 12 Months
Length: 1800mm Diameter: 2000mm
High Light:

Q355E Lebus Grooved Drum

,

Q355B Lebus Grooved Drum

,

CCS Certification Lebus Drum

CCS Certification Q355B / Q355E Lebus Grooved System For Marine Towing Winch





LEBUS sleeves

The way to save money is to use a smooth drum and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the smooth drum. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope. The lebus groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the drum, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus drum can extend the wire rope with a rope groove matching the specifications of the wire rope.



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


About Size:

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.



Product application:

As LBSS series winch grooved sleeves have the above characteristics, it has wide application range. It can be applied in the aviation, shipbuilding, offshore crane industry, oil field, coal, port marine platform, construction, railway and other heavy machinery field.



Company introduction

Our company mainly serves lifting machinery, Marine machinery, petroleum machinery, water conservancy machinery, construction machinery and other industries. The main products are oil drilling machine, workover machine, well machine, drum of oil truck and winch (main barrel adopts lebus double folding line grooves) and oil equipment accessories, my factory has more than ten years of production experience, to solve the rope in the process of winding rope, rope biting major problems.



some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100





CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch 0

CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch 1CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch 2CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch 3CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch 4CCS Certification Q355B  Q355E Lebus Grooved Drum For Marine Towing Winch 5
