Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves

Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves
Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves

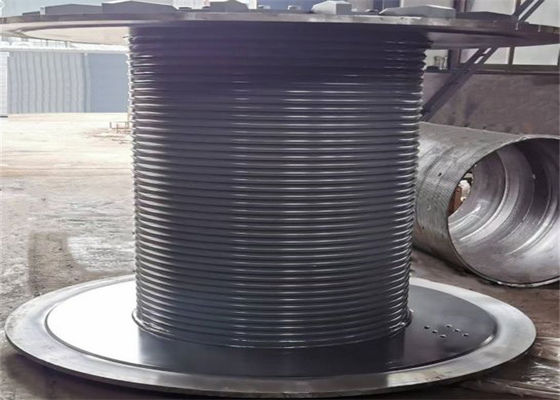

Large Image :  Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Tower Crane Lifting Lebus Rope Drum Application: Tower Crane
Material: Alloy Steel Rope Capacity: 500M
Rope Groove Type: Lebus Grooves Power Source: Hydraulic Or Electric
Warranty: 12Months Rated Speed: As Per Customers Requirement
Weight: 500kgs Rope Diameter: 20mm
High Light:

Non Standard Rope Winch Drum

,

Customization Rope Winch Drum

,

Customization Lebus Grooved Drum

Non-Standard Customization Tower Crane Lifting Rope Drum With Lebus Grooves







Oerview

Winch drum is an important part of tower crane.

One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end

The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed

Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound

The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum

The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength

Outside, but also to ensure that the wire rope winding neatly.



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center



LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change. Our company developed LEBUS rope grooves have obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire Rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range Small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral Angle of the parallel section and the climbing section will affect the effect of drum rope winding, becauset this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



Advantages of LEBUS GROOVES

Double folding rope groove makes the wire rope winding smoothly, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damaged, improve safety, and reduce the mechanical equipment for rope replacement downtime.


Technical Parameters
No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000





Product application:
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch





Outline Structure Of Drawing



Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves 0



Processing Technic

Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves 1



Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves 2Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves 3Non Standard Customization Tower Crane Lifting Rope Winch Drum With Lebus Grooves 4

Contact Details
Hebei Junke Machinery Technology Co.,Ltd

Contact Person: Marie

Tel: 86+13315131859

Fax: 86-311-66692276

Send your inquiry directly to us (0 / 3000)
