Product Details:
Payment & Shipping Terms:
|
Product Name: | Hydraulic Marine Winch Machine | Drum Quantity: | Single Or Double |
---|---|---|---|
Drum Design: | LBS Grooves | Material: | Steel |
Size: | Customization | Application Range: | Offshore |
Power Source: | Hydraulic | Capacity: | 1000T |
Packing: | Fumigation-free Pallet | Condition: | New |
Highlight: | offshore crane winch drum,wind powered lifting crane winch drum,lebus grooves crane winch drum |

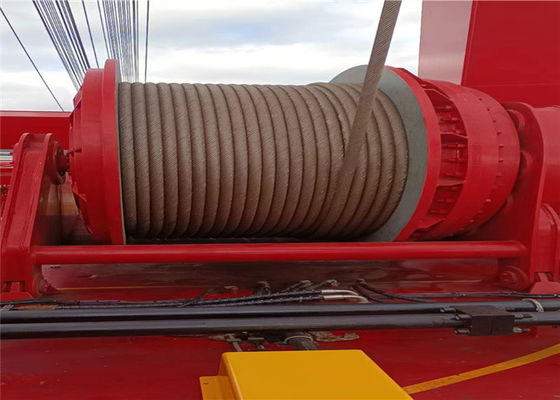

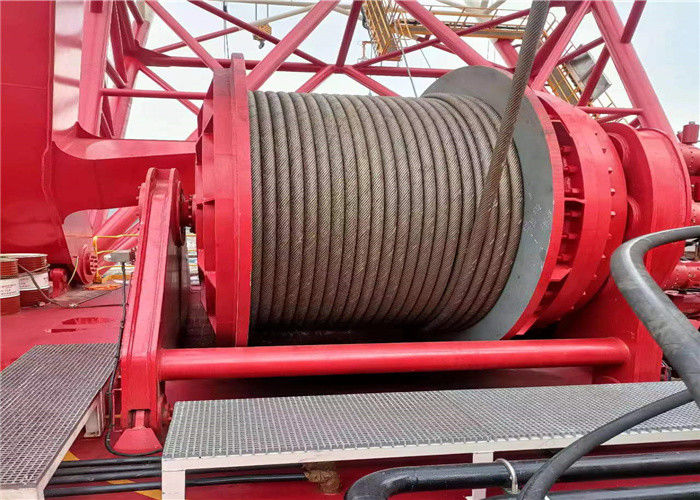

This winch is mainly used for offshore platform cranes to lift wind power generation equipment. LEBUS rope trough ensures the orderly arrangement of multiple layers of rope. Hoisting is safe and reliable. It can also be applied to Bridges, factories, ports, docks and so on.
Product name:Loading 1000T Large Power Electric Winch With Lebus Grooved Drum For Marine
other name: Hydraulic Marine winch
Drum design:Lebus grooved
Sling type:cable or wire
power: Hydraulic
colour : Red or customer
Rope: 100-1000mm
Rope diameter: 3-199mm
Hydraulic winches mainly used for oversize concrete construction of steel installation and disassembly of mechanical equipment. The wire rope ordered arrangement. Lifting is safe and reliable. It is suitable for bridge, factory, harbor, wharf, etc. Gear reducer driving, used for hoisting, pulling, drag, compact structure, stable running.
1. Top quality with competitive price.
2. Widely used in factory, mining, shipyard or double beam cranes.
3. Compact structure and reasonable design.
4. Easy to install, operate and maintenance.
5. Low noise and good working condition.
6. Safe and reliable function.
1. Rope can move at its design special groove track making the rope smoothly on-off the drum
2. will not exsit the lower layer rope being crushed or pinched by up layer problem
3. load even distribution
4. Prevent cross &mess in cable rolling working happening
5. Lower the cable damage, extend the cable life
Technical Parameters of LBS-J Slow Speed Electric Winch | ||||||||
Model | Rated | Rated | Rope | Rope | Motor | Motor | Overall | Overall |
load | speed | capacity | diameter | type | power | Dimensions | weight | |
KN | m/min | m | mm | KW | mm | KG | ||
LBS-J1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
LBS-J1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
LBS-J2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
LBS-J3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
LBS-J3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
LBS-J5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
LBS-J5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
LBS-J5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
LBS-J5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
LBS-J5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
LBS-J6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
LBS-J8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
LBS-J8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
LBS-J10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
LBS-J10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
LBS-J12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
LBS-J13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
LBS-J16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
LBS-J20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
LBS-J25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
LBS-J32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
Technical Parameters of LBS-Z High-Speed Electric Winch | ||||||||
Model | Rated | Rated | Rope | Rope | Motor | Motor | Overall | Overall |
load | speed | capacity | diameter | type | power | Dimensions | weight | |
KN | m/min | m | mm | KW | mm | KG | ||
LBS-Z0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
LBS-Z1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
LBS-Z1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
LBS-Z2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
LBS-Z3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
LBS-Z3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
LBS-Z5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
LBS-Z5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
LBS-Z8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
LBS-Z10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
