Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Crane Winch | Material: | Steel Q355B |
|---|---|---|---|
| Lifting Speed: | 0-60m/min | Produce Equipment: | Hydraulic Or Electric |
| Rope Capacity: | 50-2000M | Application Range: | Crane |
| Customization: | Offshore | Price: | Best Price |
| Color: | Yellow Or As Required | Pulling Force: | 3-15Ton |
| Highlight: | 40m/min Wire Rope Winch,Hot Dip Galvanized Hydraulic Crane Winch,40m/min hydraulic winch machine |
||

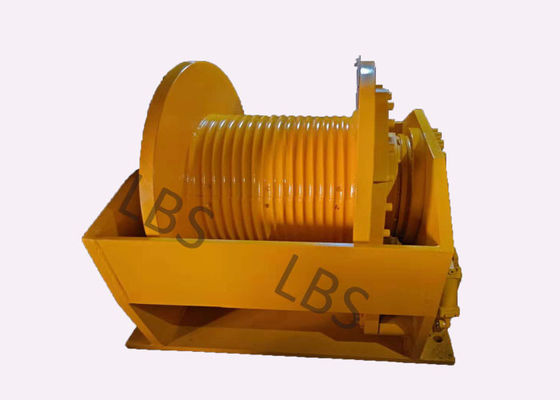

Product Structure:
LBSW Hydraulic winch primarily consists of four parts, including oil distributor, hydraulic motor,brake,drum and stand. The oil distributor inciuled one-way balance valve, brake and high pressure shuttle valve.
Product Overview:
LBSW hydraulic winch has its own valve group, so that is makes hydraulic system more simple and increases stability of the transmission devices. The hydraulic winch valve group of winch solve the problem of empty hook vibrating and fall again during hoisting. So hydraulic winch
can lift and put down stably.
The winch drum can be used no groove, spiral groove and lebus grooves, It meets the requirements of single layer spooling and multi-layer spooling. LBSW hydraulic winch is high efficiency, low energy consumption, low noise and besutiful form.
Product Outline Drawing:
|
Model |
Pull force (KN) |
Rope speed (m/min) |
Drum bottom Diameter (mm) |
Difference of working pressures (Mpa) |
Rope capacity (mm) |
Diameter of steel rope (mm) |
Model of hydraulic motor |
|
LBSW-DN10-10-00 |
10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 |
C7-5.5
|
Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc |
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures. |
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost. |
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery. |
