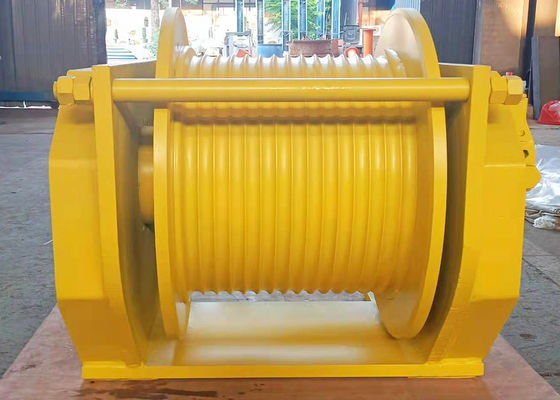

Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved

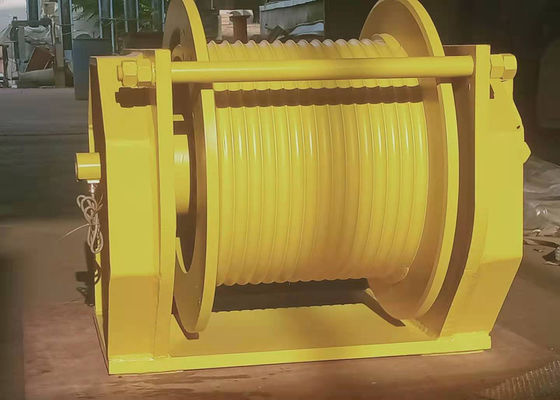

Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved

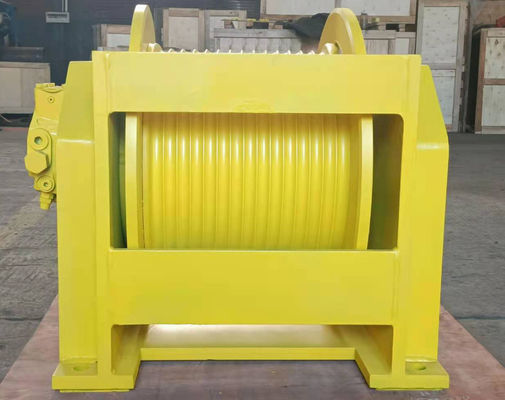

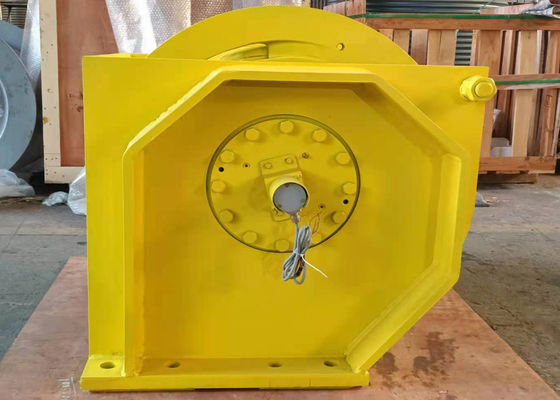

Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved

Large Image :  Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export Cases
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Product Name: Hydraulic Pulling Winch Material: Steel Q355B
Lifting Speed: 0-60m/min Produce Equipment: CNC Center
Rope Capacity: 50-2000M Application Range: Crane
Customization: Yes Price: Negotiation
Color: Yellow Or As Required Pulling Force: 3-15Ton
High Light:

Single Drum 10 ton hydraulic winch

,

grooved 10 ton hydraulic winch

,

grooved 20000 lb hydraulic winch

10 Ton Hydraulic Pulling Winch / Marine Winches For Shipyard Or Port


Product Structure:

LBSW Hydraulic winch primarily consists of four parts, including oil distributor, hydraulic motor,brake,drum and stand. The oil distributor inciuled one-way balance valve, brake and high pressure shuttle valve.



Product Overview:

LBSW hydraulic winch has its own valve group, so that is makes hydraulic system more simple and increases stability of the transmission devices. The hydraulic winch valve group of winch solve the problem of empty hook vibrating and fall again during hoisting. So hydraulic winch

can lift and put down stably.

The winch drum can be used no groove, spiral groove and lebus grooves, It meets the requirements of single layer spooling and multi-layer spooling. LBSW hydraulic winch is high efficiency, low energy consumption, low noise and besutiful form.



Product Outline Drawing:

Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved 0



Product parameters



Model

Pull force

(KN)

Rope speed

(m/min)

Drum bottom

Diamete

(mm)

Difference of working pressures

(Mpa)

Rope capacity (mm)

Diameter of steel rope

(mm)

Model of

hydraulic motor

LBSW-DN10-10-00

10 0-40 250 13 100 10 C2.5-5.5
LBSW-DN12-18-00 12 0-40 250 12.5 100 12 C2.5-5.5
LBSW-DN14-20-00 20 0-35 300 12 100 14 C2.5-5.5
LBSW-DN15-30-00 30 0-30 350 14 100 15 C3-5.5
LBSW-DN22-65-00 65 0-35 550 15 200 22 C5-5
LBSW-DN24-80-00 80 0-30 600 16 200 24 C5-5.5
LBSW-DN30-120-00 120 0-30 750 16 200 30 C7-5.5
LBSW-DN38-180-00 180 0-30 860 16 200 38 C7-5.5



Main Export Markets:

Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe



FAQ:



Q1:What's your terms of payment?

A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?

A. EXW, FOB CIF CFR etc

Q3:How about your delivery time?

A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?

A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.

Q5: What's your sample policy?

A. We can supply sample, but the customer have to pay the sample cost and courier cost.

Q6: Do you test all your goods before delivery?

A. Yes, we have 100% test before delivery.



Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved 1



Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved 2



Single Drum 10 Ton Hydraulic Winch , 20000 Lb Hydraulic Winch For Shipyard Port Grooved 3
