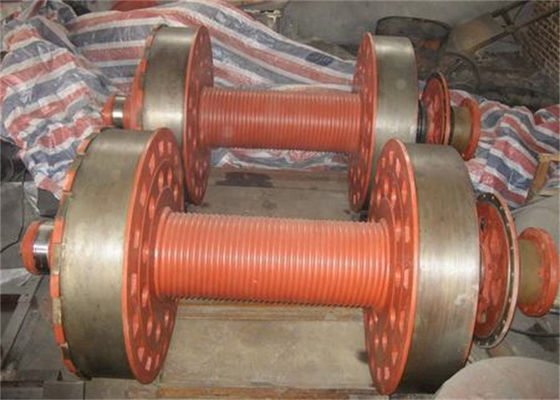

LBS 10 Ton Hydraulic Winch

LBS 10 Ton Hydraulic Winch
LBS 10 Ton Hydraulic Winch LBS 10 Ton Hydraulic Winch LBS 10 Ton Hydraulic Winch

Large Image :  LBS 10 Ton Hydraulic Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export Cases
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Product Name: Hydraulic Crane Winch Material: Hydraulic Crane Winch
Lifting Speed: 0-60m/min Produce Equipment: CNC Center
Rope Capacity: 50-2000M Application Range: Crane
Customization: Yes Price: The Best
Color: Yellow Or As Required Pulling Force: 3-15Ton
High Light:

heavy duty 10 ton hydraulic winch


LBS 10 ton hydraulic winch

Customizable Hydraulic Crane Winch Drum Hydraulic Crane Winch For Oil Well Drilling




Oil rig winch is the key equipment of the lifting system, is one of the key core machine of the drill, its main role is in the drilling operation of the kind, hanging drill, drilling string, drill bit, control drilling pressure. Drilling tools and casing, in the case of jack-up RIGS (e.g., helicopter RIGS), for lifting and lowering the . Is the key components of the winch drum shaft assembly, the use of drum winding wire rope to achieve the above operation, its key technology is its special folding line groove design and manufacture, as the change of drilling depth, layered reciprocating wire rope neatly wrapped in double broken line slot roller, has not disorderly rope, not empty tank, do not bite the rope, not back line, etc, Reduce structural damage such as deformation wear and broken strand, prolong the service life of winch and wire rope, and reduce drilling cost.


The structural point of the folding rope groove

The drum rope groove of drill winch adopts the form of double broken line structure, and its characteristics are diagonal rope groove and straight rope groove appear alternately, thus forming two diagonal rope groove area and two straight rope groove area on the surface of the drum. The so-called inclined rope groove refers to the rope groove that intersects diagonally with the drum bus, and the straight rope groove refers to the rope groove that intersects directly with the drum bus or is parallel to the flange. Diagonal strong groove controls the pitch of rope groove, which accounts for a small proportion in a circle of rope groove. Its structure point can effectively alleviate the problems of extrusion deformation, mutual friction and early wear of wire rope during loading.

The processing and production of the folding rope groove can be directly processed on the drum as a whole, and can also be made into a set with the rope groove, and made into a split type, wrapped in the smooth drum when installed, connected with the drum through bolts or welding. The material of folding rope groove barrel can be divided into carbon steel, stainless steel, alloy steel, aluminum or glass fiber, etc. The barrel can be made by sheet rolling or casting.


Product Outline Drawing:

LBS 10 Ton Hydraulic Winch 0


Product parameters



Pull force


Rope speed


Drum bottom



Difference of working pressures


Rope capacity (mm)

Diameter of steel rope


Model of

hydraulic motor


10 0-40 250 13 100 10 C2.5-5.5
LBSW-DN12-18-00 12 0-40 250 12.5 100 12 C2.5-5.5
LBSW-DN14-20-00 20 0-35 300 12 100 14 C2.5-5.5
LBSW-DN15-30-00 30 0-30 350 14 100 15 C3-5.5
LBSW-DN22-65-00 65 0-35 550 15 200 22 C5-5
LBSW-DN24-80-00 80 0-30 600 16 200 24 C5-5.5
LBSW-DN30-120-00 120 0-30 750 16 200 30 C7-5.5
LBSW-DN38-180-00 180 0-30 860 16 200 38 C7-5.5


Main Export Markets:

Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe




Q1:What's your terms of payment?

A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?


Q3:How about your delivery time?

A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?

A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.

Q5: What's your sample policy?

A. We can supply sample, but the customer have to pay the sample cost and courier cost.

Q6: Do you test all your goods before delivery?

A. Yes, we have 100% test before delivery.
