Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Product Name: | Groove Drums Sleeves |
|---|---|---|---|
| Grooved Type: | Lebus Grooved | Connection Type: | Plug Welding |
| Dia. Of Rope: | 28mm | Layers: | 12Layers |
| Warranty: | 12 Months | Dia. Of Drum: | 2000mm |
| Rotation: | Right | Application: | Offshore |
| Highlight: | large capacity lbs sleeve,offshore mrine crane lbs sleeve |
||

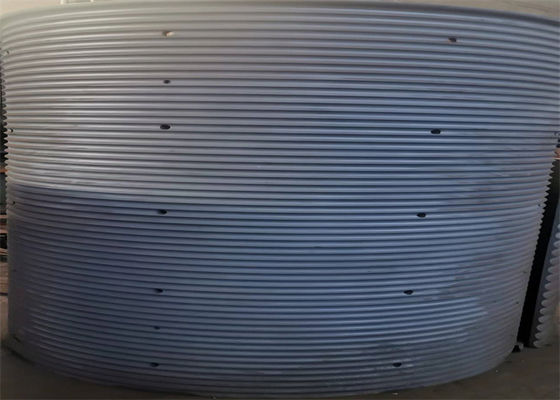

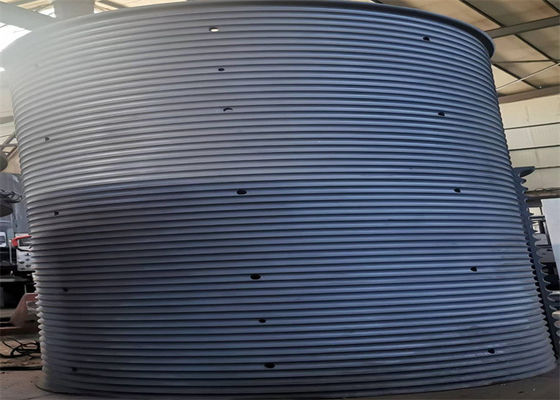

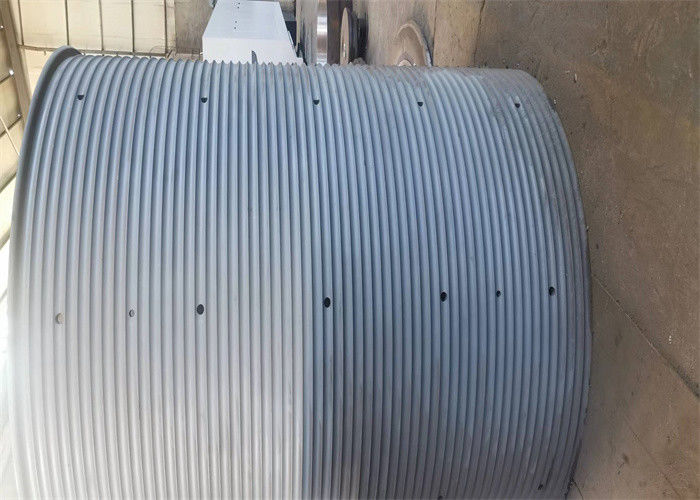

The way to save money is to use a smooth druml and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the smooth drum. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope.
The lebus groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the drum, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus druml can extend the wire rope with a rope groove matching the specifications of the wire rope.
Split-type grooved sleeves
Integrated type grooved sleeves
the complete drum with flanges,machine-finished
the groove is cut directly into the body of the drum
according to customers' requirements,the flanges are either welded or screw-bolted
the groove is available as either LBS-groove or helical-groove
groove geometry is determined by rope construction,diameter and length and by application
the drum is provided with the requested mounting dimensions to the fit the flanges by welding or screw bolting
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.
As LBSS series winch grooved sleeves have the above characteristics, it has wide application range. It can be applied in the aviation, shipbuilding,offshore crane industry, oil field, coal, port marine platform, construction, railway and other heavy machinery field.
Early introduction the advanced technics form domestic and foreign, after years R&D, our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010. Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.
| Rotation Direction: | Left or Right (as require) |
| Wire Rope Diameter: | 3 MM~190 MM |
| Wire capacity: | 100-10000M |
| Processing equipment: | CNC machining center |
| Durm Type: | LBS spooling system - based on the unique geometry of the drum grooving |
| Service: | All of the product be customized |
