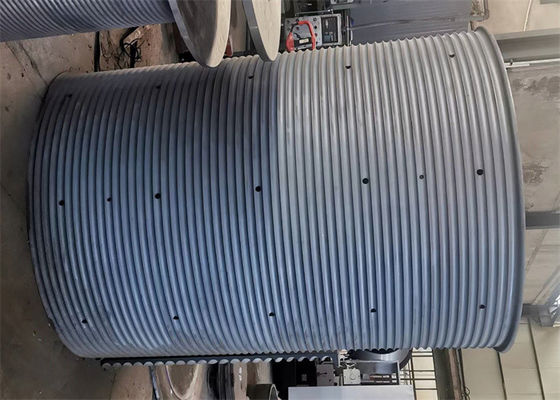

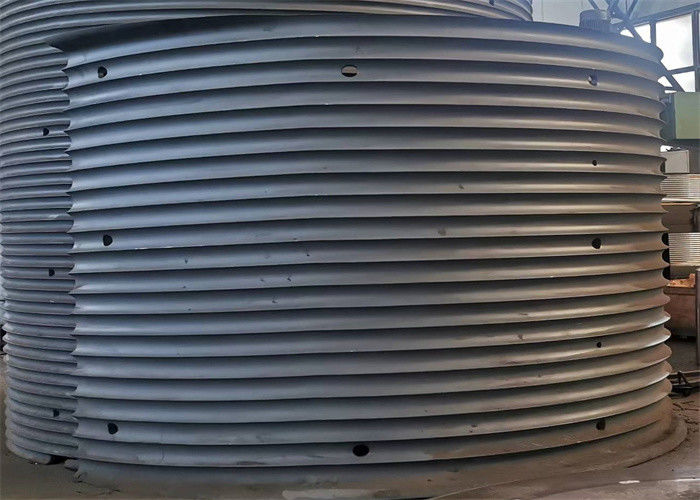

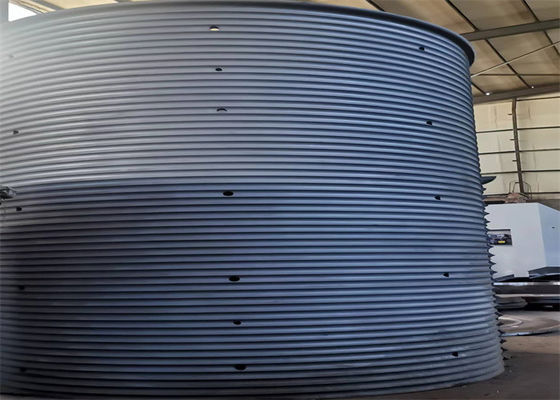

High Efficiency Split Lbs Grooved Winch Drum Sleeves, 100mm-1200mm Diameter

High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter
High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter

Large Image :  High Efficiency Split Lbs Grooved Winch Drum Sleeves, 100mm-1200mm Diameter

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Carbon Steel Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Connection Type: Plug Welding
Dia. Of Rope: 28mm Layes: 18Layes
Warranty: 12 Months Dia. Of Drum: 2000mm
High Light:

high efficiency winch drum sleeves

,

1200mm diameter winch drum sleeves

High Efficiency 100mm-1200mm Diameter Split LBS Grooved Winch Drum Sleeves



LEBUS Sleeves

The way to save money is to use a smooth druml and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the smooth drum. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope.
The lebus groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the drum, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus druml can extend the wire rope with a rope groove matching the specifications of the wire rope.



Product include

Split-type grooved sleeves
Integrated type grooved sleeves
the complete drum with flanges,machine-finished

the groove is cut directly into the body of the drum
according to customers' requirements,the flanges are either welded or screw-bolted
the groove is available as either LBS-groove or helical-groove
groove geometry is determined by rope construction,diameter and length and by application.
the drum is provided with the requested mounting dimensions to the fit the flanges by welding or screw bolting.



About Size

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.



Product application

As LBSS series winch grooved sleeves have the above characteristics, it has wide application range. It can be applied in the aviation, shipbuilding,offshore crane industry, oil field, coal, port marine platform, construction, railway and other heavy machinery field.



About company

Early introduction the advanced technics form domestic and foreign, after years R&D, our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010. Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.



Some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100





High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter 0

High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter 1High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter 2High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter 3High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter 4High Efficiency Split Lbs Grooved  Winch  Drum Sleeves, 100mm-1200mm Diameter 5
