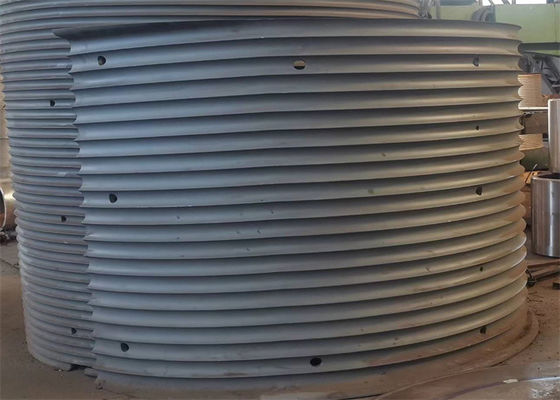

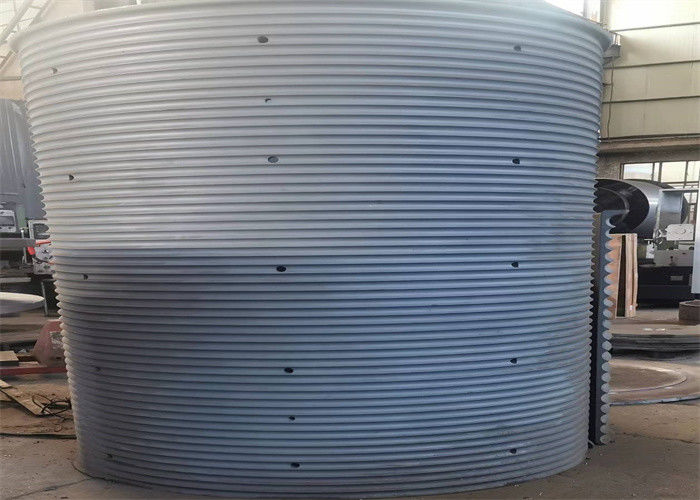

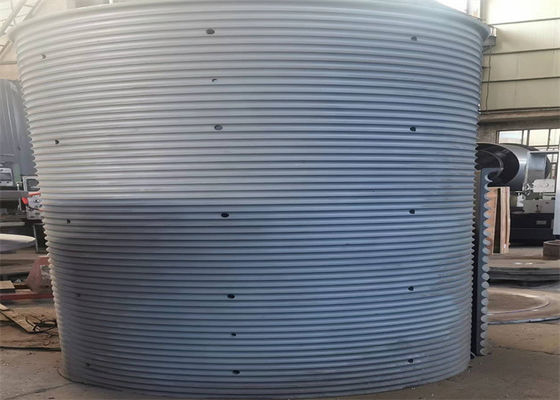

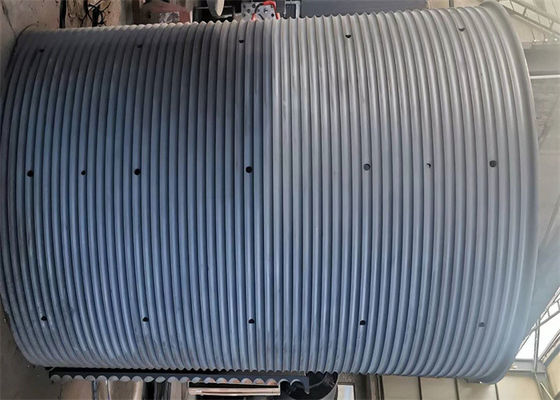

Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum

Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum
Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum

Large Image :  Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Carbon Steel Product Name: Grooved Drum Sleeves
Grooved Type: Lebus Grooved Connection Type: Plug Welding
Dia. Of Rope: 30mm Layers: 2~40 Layers
Warranty: 12 Months Dia. Of Drum: 2000mm
High Light:

carbon steel grooved drum sleeves

,

winch grooved drum sleeves

Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum

LEBUS sleeves

The way to save money is to use a smooth druml and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the smooth drum. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope.
The lebus groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the drum, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus druml can extend the wire rope with a rope groove matching the specifications of the wire rope.

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


About Size

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.



Product application

As LBSS series winch grooved sleeves have the above characteristics, it has wide application range. It can be applied in the aviation, shipbuilding,offshore crane industry, oil field, coal, port marine platform, construction, railway and other heavy machinery field.



About company

Early introduction the advanced technics form domestic and foreign,after years R&D, our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010. Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.



some Technical Parameters

No

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum 0

Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum 1Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum 2Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum 3Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum 4Carbon Steel Material Lebus Grooved Drum Sleeves For Winch Drum 5
