Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Crane Winch | Material: | Alloy Steel |
|---|---|---|---|
| Lifting Speed: | 190m/min | Produce Equipment: | Hydraulic |
| Rope Capacity: | 100m | Application: | Lifting And Pulling Equipmernt |
| Brake: | Band Brake | Pulling Force: | 2T |
| Highlight: | lebus grooved hydraulic crane winch,alloy steel hydraulic crane winch |
||
The working principle of hydraulic transmission is to use the pressure energy of the liquid to transfer power, and the pressure energy of the liquid is converted into mechanical energy to drive the movement of the working parts. The hydraulic system must control and adjust the oil pressure, flow rate and direction to meet the requirements of force, speed and direction of the working parts.

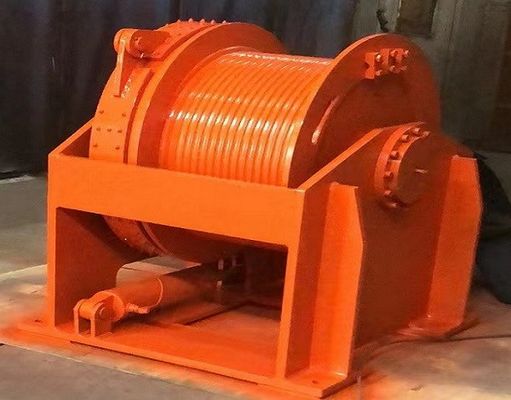

| Product name | LEBUS Grooved Super Fast Wire Rope Drum For Hydraulic Crane Winch With Sents |
| Color | orange |
| Size | 35*35*20 |
| Pull | 8/10/15/20 |
| speed | 190m/min |
| Wire rope capacity | 100 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| Rope diameter |
4mm |
Hydraulic winch is mainly rated load larger winch, under normal circumstances more than 10T to 5000T winch design hydraulic winch.
Product Outline Drawing
|
Model |
Pull force (KN) |
Rope speed (m/min) |
Drum bottom Diameter (mm) |
Difference of working pressures (Mpa) |
Rope capacity (mm) |
Diameter of steel rope (mm) |
Model of hydraulic motor |
|
LBSW-DN10-10-00 |
10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 |
C7-5.5
|
Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe
a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b. One year of warranty.
c. The engineer can provide overseas service.
d. Quick and responsible after-sales service.
e. Very competitive price.
f. Before sending the goods, we will test and adjust, so you can use directly when you get it.
g. Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h. Any problems occur while using, professional advice will be offered.
i. All kinds of frequently used parts are supplied all the year round.
