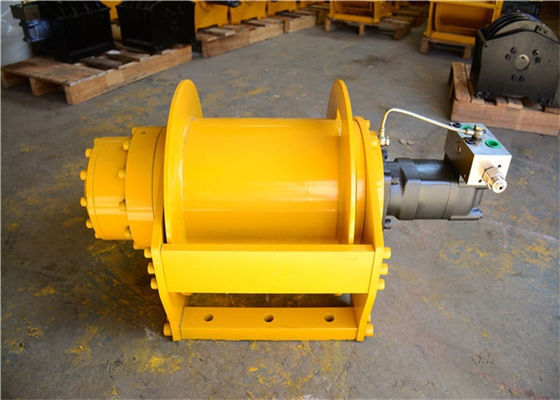

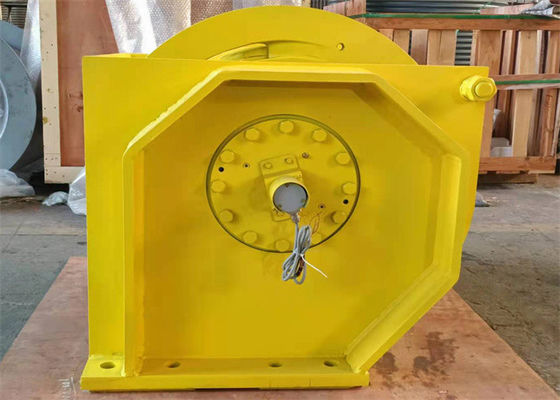

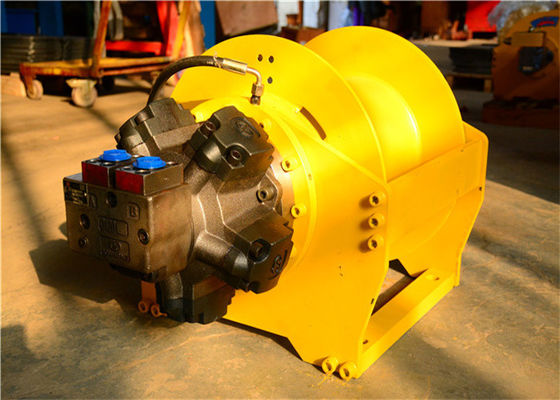

Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized

Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized
Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized

Large Image :  Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export Cases
Delivery Time: After advance 20-30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Product Name: Multi-Disc Brake Hydraulic Hoist Winch With SAI Motor Of GM Motor, Customized Material: Steel Q355B
Lifting Speed: 50~80m/min Produce Equipment: Hydraulic
Rope Capacity: 80m Drum Type: Spiral Grooved
Brake: Band Brake Pulling Force: 5 KN
High Light:

multi disc brake hydraulic hoist winch

,

sai motor hydraulic hoist winch

Multi-Disc Brake Hydraulic Hoist Winch With SAI Motor Of GM Motor, Customized

Hydraulic winch

Hydraulic winch main technical indicators are rated load, support load, rope speed, rope capacity and so on.
Hydraulic winch is a small and light lifting equipment (see lifting machinery) with winding wire rope or chain to lift or pull heavy objects, also known as winch. Winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope winding, easy to move and widely used. A winch is also known as a winch. The product has high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as a modern electronic control automatic operation line supporting equipment.



Structural components

Drum, drum shaft assembly, which is the core components of the winch.



Oerview

Winch drum is an important part of oil rig winch, winch drum. One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end. The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed. Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound. The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum. The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength. Outside, but also to ensure that the wire rope winding neatly.



parameter
color yellow /black /gray/as customes
size 35*35*20
Pull 8/10/15/20
layer 1-7
Wire rope capacity 17-230
Brake Multi disc type
Planetary reduction ratio I=5.23
L/min

As customes





Product Outline Drawing

Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized 0



Product parameters



Model

Pull force

(KN)

Rope speed

(m/min)

Drum bottom

Diameter

(mm)

Difference of working pressures

(Mpa)

Rope capacity (mm)

Diameter of steel rope

(mm)

Model of

hydraulic motor

LBSW-DN10-10-00

10 0-40 250 13 100 10 C2.5-5.5
LBSW-DN12-18-00 12 0-40 250 12.5 100 12 C2.5-5.5
LBSW-DN14-20-00 20 0-35 300 12 100 14 C2.5-5.5
LBSW-DN15-30-00 30 0-30 350 14 100 15 C3-5.5
LBSW-DN22-65-00 65 0-35 550 15 200 22 C5-5
LBSW-DN24-80-00 80 0-30 600 16 200 24 C5-5.5
LBSW-DN30-120-00 120 0-30 750 16 200 30 C7-5.5
LBSW-DN38-180-00 180 0-30 860 16 200 38

C7-5.5







Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized 1



Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized 2



Multi Disc Brake Hydraulic Hoist Winch With Sai Motor Of Gm Motor, Customized 3
