Product Details:
Payment & Shipping Terms:
|

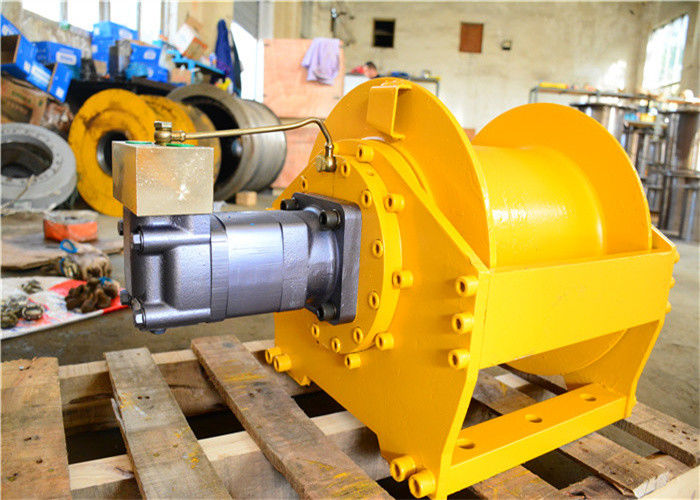

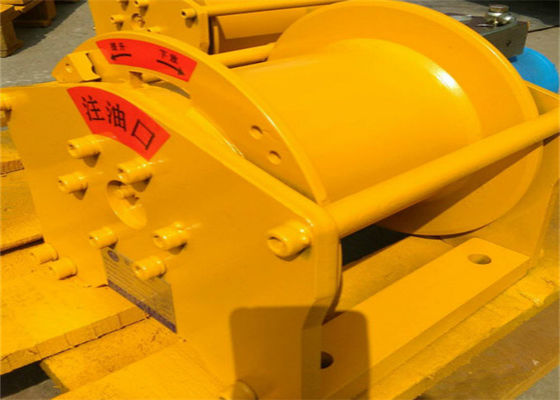

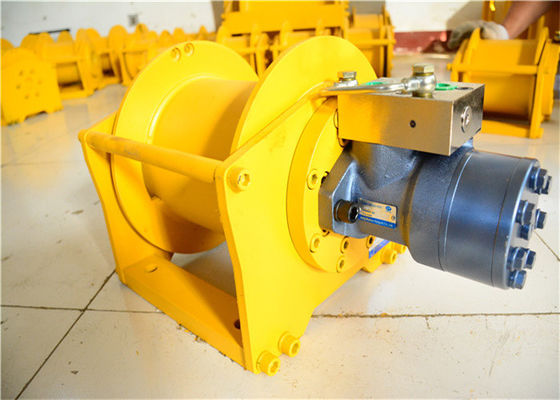

| Product Name: | 15000 High Speed LBS Hydraulic Crane Winch For Boat Fishing | Material: | Q355B |
|---|---|---|---|
| Lifting Speed: | 75m/min | Produce Equipment: | Hydraulic |
| Rope Capacity: | 80m | Application: | Boat Fishing |
| Brake: | Multi-disc Brake | Pulling Force: | 5 Ton |
| Highlight: | 15000 lbs hydraulic crane winch,boat fishing hydraulic crane winch |
||
The working principle of hydraulic transmission is to use the pressure energy of the liquid to transfer power, and the pressure energy of the liquid is converted into mechanical energy to drive the movement of the working parts. The hydraulic system must control and adjust the oil pressure, flow rate and direction to meet the requirements of force, speed and direction of the working parts.
A complete hydraulic system is mainly composed of the following five parts:
1. Power device
2. Executive components
3. Control and adjustment device
4. Auxiliary devices
5. Working medium
| Product name | Hydraulic Crane Winch With Encoder And Grooved Drum For Marine Hoisting |
| color | yellow /black /gray/as customes |
| size | 35*35*20 |
| Pull | 8/10/15/20 |
| layer | 1-7 |
| Wire rope capacity | 17-230 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| L/min |
As customes |
Product Outline Drawing
|
Model |
Pull force (KN) |
Rope speed (m/min) |
Drum bottom Diameter (mm) |
Difference of working pressures (Mpa) |
Rope capacity (mm) |
Diameter of steel rope (mm) |
Model of hydraulic motor |
|
LBSW-DN10-10-00 |
10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 |
C7-5.5
|
a. Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b. One year of warranty.
c. The engineer can provide overseas service.
d. Quick and responsible after-sales service.
e. Very competitive price.
f. Before sending the goods, we will test and adjust, so you can use directly when you get it.
g. Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h. Any problems occur while using, professional advice will be offered.
i. All kinds of frequently used parts are supplied all the year round.
Standard: internal brake, external brake
Optional configuration: Supports wired remote control
Can be equipped with fixed length automatic cable collecting system
It can be equipped with special muffler powered by winch with air source of air compressor (air is powered by internal combustion engine)
Can be equipped with pressure rope system
Can be equipped with rope system
