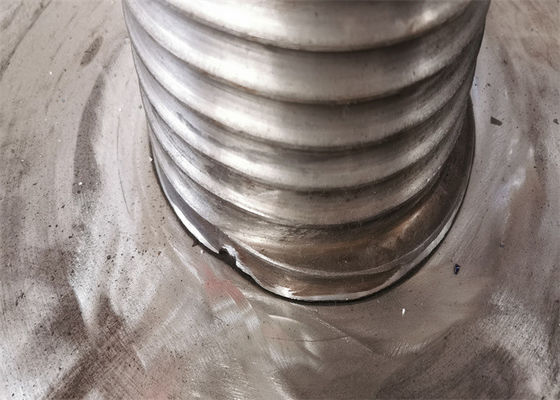

Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat In Marine

Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine
Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine

Large Image :  Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat In Marine

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Lebus Wire Rope Winch Drum Application: Mining Crane
Material: Alloy Steel Rope Capacity: 800M
Rope Groove Type: Lebus Grooves Power Source: Hydraulic Or Elctric
Warranty: 12 Months Rated Speed: Fast
Winch Capacity: 5T Rope Diameter: 30mm,As Demand
High Light:

5 ton grooved wire rope drum

,

220 volt rope winch drum

,

alloy steel rope winch drum

Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine

Lebus Rope Groove Drum Material

High polymer nylon, carbon steel, alloy steel, stainless steel, aluminum and all kinds of high strength steel Q345, Q420, Q460, 20GrMo, 40GrMo, 42GrMo, etc.



LEBUS Rope Groove

With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



Advantages Of LEBUS Grooves

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.



Precautions For Using Lebus Grooves

Generally, the tighter the wire rope is, the better it is wound. The wire rope should withstand at least 2% of the breaking load or 10% of the operating load as recommended by LEBUS. Of course, for safety factor and wire rope design, must be prepared to withstand the destructive load.

The design and manufacture of LEBUS groove drum should meet the special requirements of lifting operation, and the type of rope groove should adapt to the length, diameter and structure type of wire rope. Mechanical design, machining, design software, mechanical engineer, equipment management, welding, hydraulic, casting, sealing.



Outline Structure Of Drawing



Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine 0



Processing Technic

Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine 1



Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine 2Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine 3Grooved Single Drum For 5 Ton 220 Volt Electric Pulling Boat  In Marine 4
