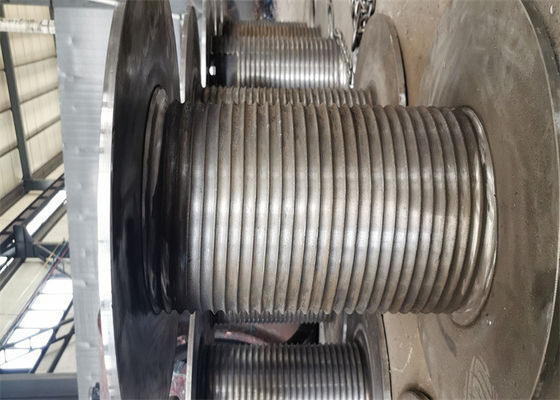

Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane

Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane
Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane

Large Image :  Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Lebus Wire Rope Winch Drum Application: Mining Crane
Material: Alloy Steel Rope Capacity: 800M
Rope Groove Type: Lebus Grooves Power Source: Hydraulic Or Elctric
Warranty: 12 Months Rated Speed: As Per Customers Requirement
Weight: 1800kgs Rope Diameter: 30mm,As Demand
Highlight:

mining crane rope winch drum

,

800m rope winch drum

,

lebus rope winding drum

Lebus Grooved Wire Rope Winch Drum For 10T KT / MT Mining Crane

Over view of the winch

Winch is a small and light lifting equipment (see lifting machinery) with winding wire rope or chain to lift or pull heavy objects, also known as winch. Winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope winding, easy to move and widely used. A winch is also known as a winch. The product has high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as a modern electronic control automatic operation line supporting equipment.



The basic information
name  Wire Rope Winch Drum
the alias Wire Rope Winch Drum
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower



Oerview

Winch drum is an important part of oil rig winch, winch drum. One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end. The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed. Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound. The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum. The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength. Outside, but also to ensure that the wire rope winding neatly.



LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



Advantages of LEBUS GROOVE

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.



Precautions for using lebus grooves

Generally, the tighter the wire rope is, the better it is wound. The wire rope should withstand at least 2% of the breaking load or 10% of the operating load as recommended by LeBus. Of course, for safety factor and wire rope design, must be prepared to withstand the destructive load.

The design and manufacture of LEBUS groove drum should meet the special requirements of lifting operation, and the type of rope groove should adapt to the length, diameter and structure type of wire rope. Mechanical design, machining, design software, mechanical engineer, equipment management, welding, hydraulic, casting, sealing.



Outline Structure Of Drawing



Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane 0

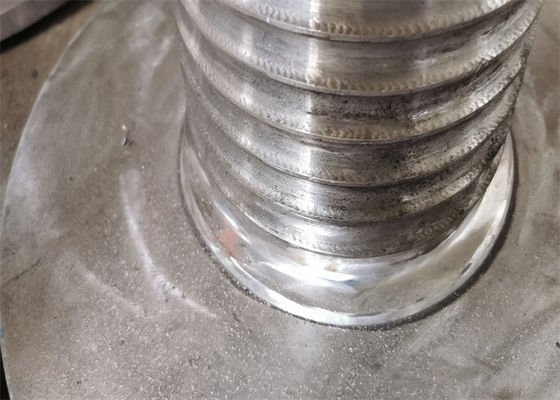

Processing Technic

Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane 1



Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane 2Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane 3Lebus Grooved 800M Wire Rope Winch Drum For 10t Kt / Mt Mining Crane 4
