Carbon Steel 8mm Diameter Wire Rope Winding Drum

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

Carbon Steel 8mm Diameter Wire Rope Winding Drum

Carbon Steel 8mm Diameter Wire Rope Winding Drum
Carbon Steel 8mm Diameter Wire Rope Winding Drum Carbon Steel 8mm Diameter Wire Rope Winding Drum

Large Image :  Carbon Steel 8mm Diameter Wire Rope Winding Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Rope Winch Drum Application: Mining Crane
Material: Alloy Steel Rope Capacity: 800M
Rope Groove Type: Lebus Grooves Power Source: Hydraulic
Warranty: 12 Months Rated Speed: As Per Customers Requirement
Weight: 1800kgs Rope Diameter: 30mm,As Demand
High Light:

8mm diameter wire rope winding drum

,

lebus crane winch drum

,

lebus wire rope winding drum

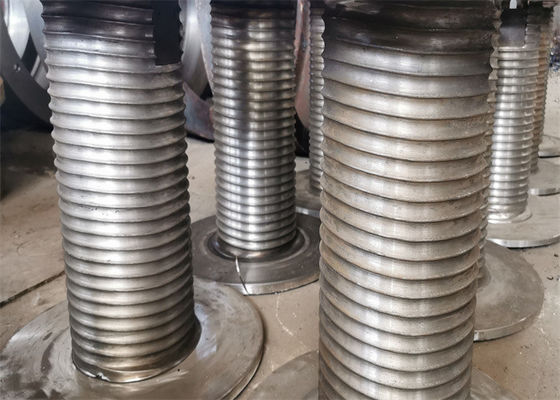

Carbon Steel 8mm Diameter Grooved Wire Rope Winch Drum For Mining Crane

Over view of the winch

Winch is a small and light lifting equipment (see lifting machinery) with winding wire rope or chain to lift or pull heavy objects, also known as winch. Winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope winding, easy to move and widely used. A winch is also known as a winch. The product has high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as a modern electronic control automatic operation line supporting equipment.



Oerview

Winch drum is an important part of oil rig winch, winch drum

One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end

The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed

Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound

The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum

The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength

Outside, but also to ensure that the wire rope winding neatly.



LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more

The transmission form and the structure form, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire Rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range Small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral Angle of the parallel section and the climbing section will affect the effect of drum rope winding, becauset this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



Advantages of LEBUS GROOVE

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.

Product Introduction

The LBS grooved winch drum is designed and produced specifically to meet the application for which is used. According to the rope’s diameter,length and construction type,we can confirm groove pattern.

The Characteristics Of The Grooves

1. It has specifically groove to make wire rope spooling orderly and uniform strength on every layer.

2. It can be calculated the exact forces that the rope imposed on the drum.

3. The spooling is totally under control,which prevents lower layers being crushed or pinched by upper layers.

4. With the groove,the continuous groove in the drum is parallel to the flange except for two crossover points on each revelution where the groove moves across the drum half a pitch to give a pull pitch of movement for each pitch.

Design Parameters Of Wire Rope Winch Drum

1. Drum diameter

2. Width between flanges

3. Wire rope or cable diameter

4. Rotation direction of wire rope: left and right

7. Material of the drum

8. Diameter of flange

9. Maximum working load of wire rope

10. The maximum capacity of the wire rope/cable

11. The position angle of the drum and the fixed pulley

12. Rope entry mode

13. If possible, provide detailed drum drawings

Note: The drum is divided into integral type and split type, the Integral need drawing processing.

The split need inner diameter, outer diameter, length, the diameter of the wire rope, the direction of the rope groove (left or right)



The basic information
name Wire Rope Winch Drum
the alias Wire Rope Winch Drum
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower
