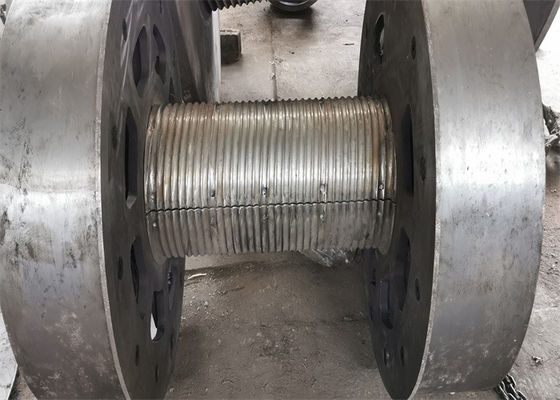

Efficiently Using Split Grooved Drum Sleeves Welded On Winch

Efficiently Using Split Grooved Drum Sleeves Welded On Winch
Efficiently Using Split Grooved Drum Sleeves Welded On Winch Efficiently Using Split Grooved Drum Sleeves Welded On Winch Efficiently Using Split Grooved Drum Sleeves Welded On Winch

Large Image :  Efficiently Using Split Grooved Drum Sleeves Welded On Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Steel Q355B Q355D Product Name: Split -Sleeves
Grooved Type: Lebus Grooved Surface Color: Customizable
Connection Type: Welded Dia. Of Rope: 4~100mm
Layes: 2~80 Layes Warranty: 12 Months
Dia. Of Drum: 20-5000 Supply Ability: 200000
High Light:

split grooved drum sleeves

,

welded grooved drum sleeves

Lebus Grooved Sleeves Made of Nylon for Multi-layer Winding Wire Rope

LBSS Series Grooved Sleeves(Shell)

Split-sleeves consist of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral groove and lebus groove.
The split-sleeve depends on the drum’s size,wire rope diameter and length.

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


The Advantages of Nylon

1. High mechanical strength, good toughness, high tensile and compressive strength. Its specific tensile strength is higher than that of metal, and its compressive strength is similar to that of metal, but its rigidity is not as good as that of metal.

2. Outstanding fatigue resistance, parts after repeated bending can still maintain the original mechanical strength.

3. High softening point, heat resistance (such as nylon 46, high crystalline nylon thermal deformation temperature is high, can be used for a long time in 150 degrees. PA66 after glass fiber reinforced, its thermal deformation temperature of 250 degrees or above).

4. Smooth surface, small friction coefficient, wear-resistant.

5. Corrosion resistance, very alkali and most salt liquid, but also resistant to weak acid, oil, gasoline, aromatic compounds and general solvents, aromatic compounds are inert, but not resistant to strong acid and oxidizer. It can resist the erosion of gasoline, oil, fat, alcohol, alkali and has good anti-aging ability. Can be used as lubricating oil, fuel and other packaging materials.

About Size

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.


Some Technical Parameters



No

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Efficiently Using Split Grooved Drum Sleeves Welded On Winch 0Efficiently Using Split Grooved Drum Sleeves Welded On Winch 1Efficiently Using Split Grooved Drum Sleeves Welded On Winch 2Efficiently Using Split Grooved Drum Sleeves Welded On Winch 3Efficiently Using Split Grooved Drum Sleeves Welded On Winch 4Efficiently Using Split Grooved Drum Sleeves Welded On Winch 5Efficiently Using Split Grooved Drum Sleeves Welded On Winch 6
