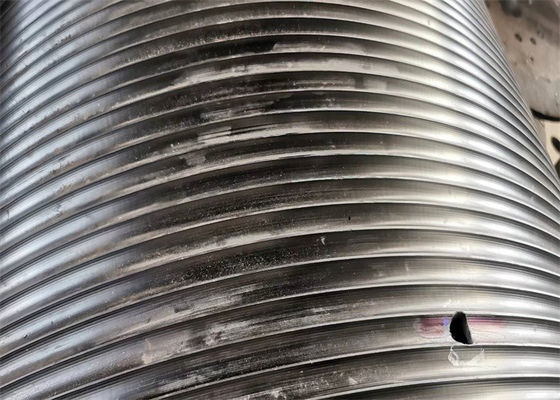

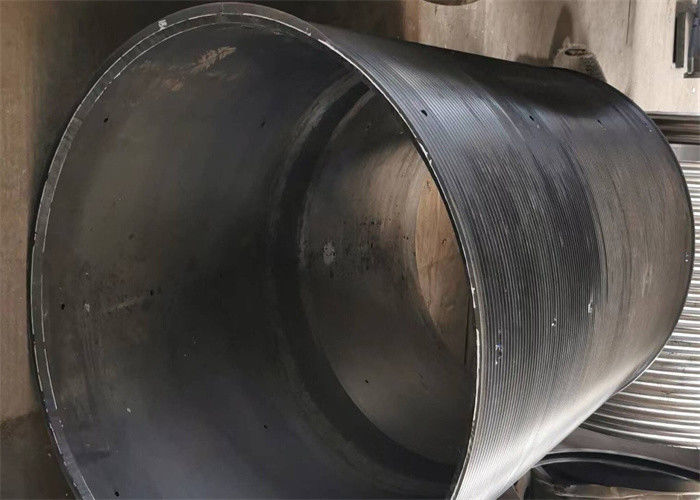

Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope

Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope
Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope

Large Image :  Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Nylon Product Name: Lebus Sleeves
Grooved Type: Lebus Grooved Surface Color: Customizable
Connection Type: Welded Dia. Of Rope: 4~100mm
Layes: 2~40 Layes Warranty: 12 Months
Dia. Of Drum: 20-5000 Supply Ability: 20000
High Light:

nylon lebus groove sleeves

,

multi layer winding lebus groove sleeves

Lebus Grooved Sleeves Made of Nylon for Multi-layer Winding Wire Rope

LEBUS Sleeves

The way to save money is to use a smooth drum and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the smooth drum. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope.
The lebus groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the drum, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus druml can extend the wire rope with a rope groove matching the specifications of the wire rope.

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


The Advantages of Nylon

1. High mechanical strength, good toughness, high tensile and compressive strength. Its specific tensile strength is higher than that of metal, and its compressive strength is similar to that of metal, but its rigidity is not as good as that of metal.

2. Outstanding fatigue resistance, parts after repeated bending can still maintain the original mechanical strength.

3. High softening point, heat resistance (such as nylon 46, high crystalline nylon thermal deformation temperature is high, can be used for a long time in 150 degrees. PA66 after glass fiber reinforced, its thermal deformation temperature of 250 degrees or above).

4. Smooth surface, small friction coefficient, wear-resistant.

5. corrosion resistance, very alkali and most salt liquid, but also resistant to weak acid, oil, gasoline, aromatic compounds and general solvents, aromatic compounds are inert, but not resistant to strong acid and oxidizer. It can resist the erosion of gasoline, oil, fat, alcohol, alkali and has good anti-aging ability. Can be used as lubricating oil, fuel and other packaging materials.

About Size

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.


Some Technical Parameters



No

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 0Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 1Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 2Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 3Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 4Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 5Nylon Lebus Grooved Sleeves For Multi Layer Winding Wire Rope 6
