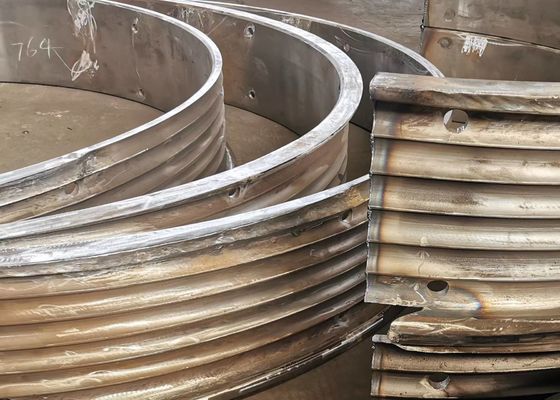

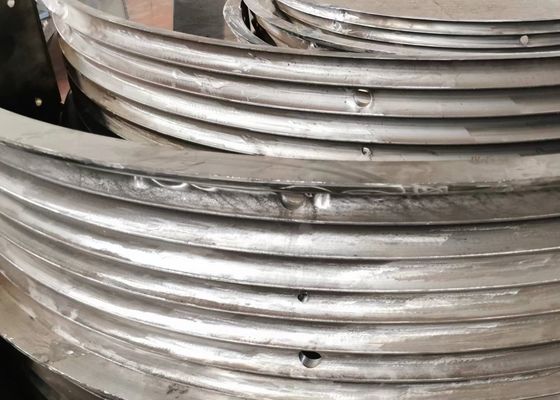

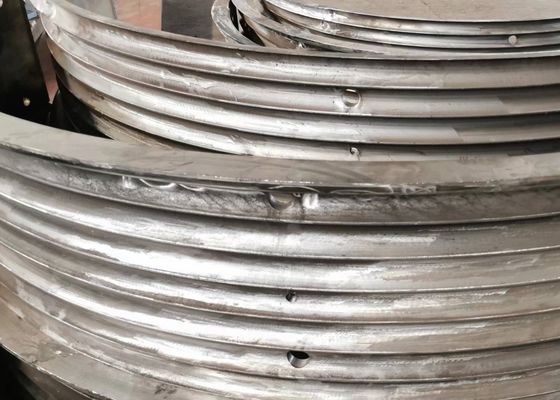

Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum

Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum
Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum

Large Image :  Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Alloy Steel Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Surface Color: Customizable
Connection Type: Welded Dia. Of Rope: 4~100mm
Layes: 2~40 Layes Warranty: 12 Months
Dia. Of Drum: 20-5000 Supply Ability: 200 Sets Per Month
High Light:

lebus grooved drum sleeves

,

split type grooved drum sleeves

Split Type Lebus Drum Sleeves Weld To Smooth Winch Drum

LEBUS Sleeves

The way to save money is to use a smooth druml and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the smooth drum. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope.
The lebus groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the drum, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus druml can extend the wire rope with a rope groove matching the specifications of the wire rope.

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Product Application

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch, Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch

About Size

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.


Some Technical Parameters





No

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum 0

Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum 1Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum 2Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum 3Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum 4Split Type Lebus Grooved Drum Sleeves Weld To Smooth Winch Drum 5
