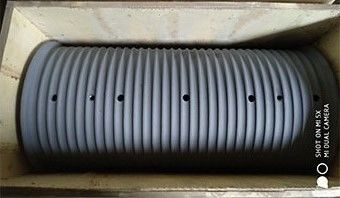

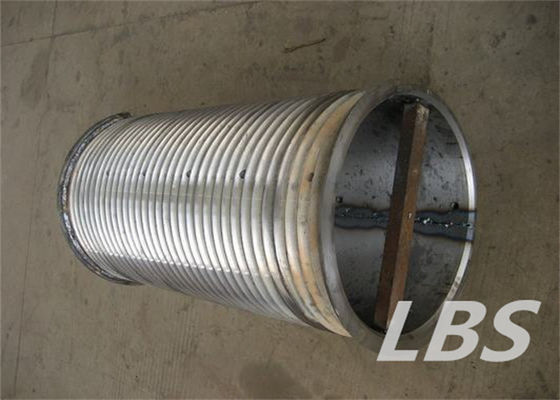

Steel Material Split Type Sleeves On Drum For Hoisting Drum

Steel Material Split Type Sleeves On Drum For Hoisting Drum
Steel Material Split Type Sleeves On Drum For Hoisting Drum Steel Material Split Type Sleeves On Drum For Hoisting Drum Steel Material Split Type Sleeves On Drum For Hoisting Drum

Large Image :  Steel Material Split Type Sleeves On Drum For Hoisting Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Steel Product Name: Groove Drums Sleeves
Grooved Type: Lebus Connection Type: Bolted Or Welded
Dia. Of Rope: 4-60mm Layes: 2~22 Layes
Warranty: 1.5year Supply Ability: 5000 Sets Per Month
Rope Capacity: 600m Application: Hoist / Winch Drum
High Light:

steel material sleeves on drum

,

split type sleeves on drum

,

hoisting drum sleeves

Steel Material Split-Type Sleeves On The Drumfor Hoisting Drum




overview of the sleeve

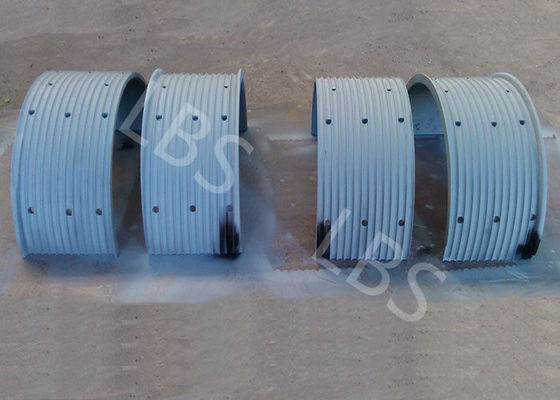

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.



Characteristics and advantages of LEBUS

Ribas reel has a special key, is designed at the bottom of the reel end flange (end insert) and extension pieces, they guide the wire rope from the first layer to the second layer smoothly.

The folding groove makes the load evenly distributed between layers, and the practice proves that the service life of the wire rope is greatly prolonged. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.



Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch



some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



FAQ:
  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?
