Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System

Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System
Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System

Large Image :  Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Cabon Steel Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Connection Type: Bolted
Dia. Of Rope: 3~20mm Layes: 2~22 Layes
Warranty: 12 Months Supply Ability: 500 Sets Per Month
Rope Capacity: 800m Application: Hoist /winch Drum
High Light:

split type grooved drum sleeves

,

q355b grooved sleeves

,

smooth drum system grooved sleeves

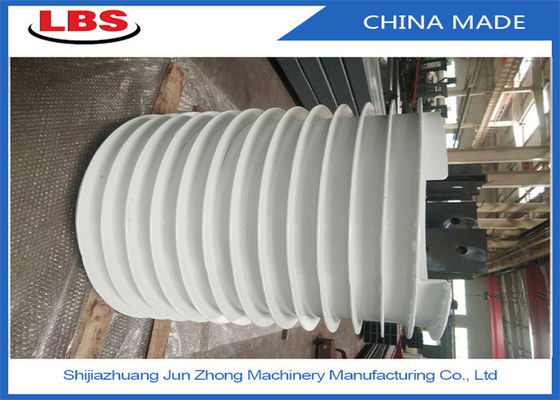

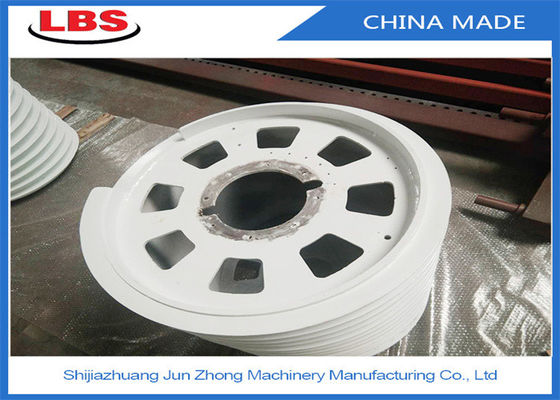

Split Type Q355B Lebus Grooved Sleeves Wrapped On A Smooth Drum System




overview of the sleeve

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.




Production Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine


Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch



some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



FAQ:
  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?





Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 0Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 1

Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 2

Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 3Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 4

 Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 5


 Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 6Split Type Q355b Lebus Grooved Sleeves Wrapped On Smooth Drum System 7
