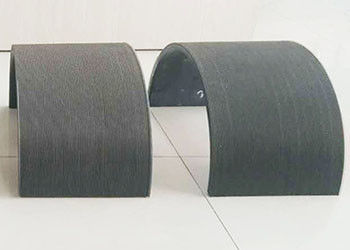

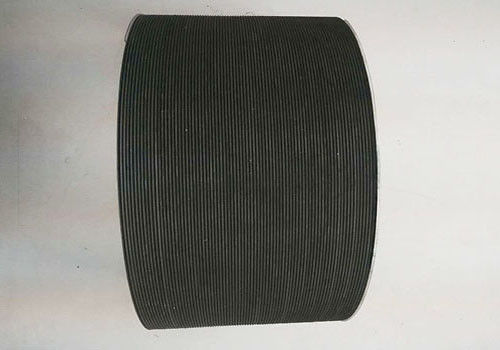

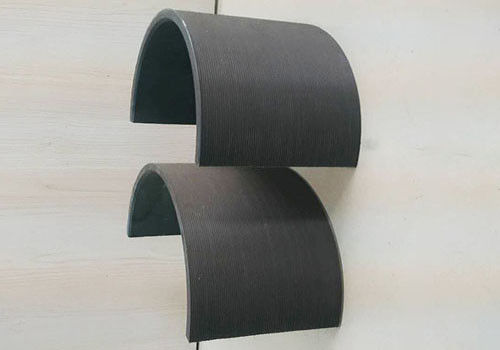

Light Portable Grooved Drum Sleeves Nylon Material Lebus

Light Portable Grooved Drum Sleeves Nylon Material Lebus
Light Portable Grooved Drum Sleeves Nylon Material Lebus Light Portable Grooved Drum Sleeves Nylon Material Lebus Light Portable Grooved Drum Sleeves Nylon Material Lebus

Large Image :  Light Portable Grooved Drum Sleeves Nylon Material Lebus

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Nylon Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Model: Customizable
Connection Type: Bolted Dia. Of Rope: 4~100mm
Layes: 2~20 Layes Warranty: 12 Months
Color: Black Supply Ability: 200 Sets Per Month
Highlight:

light grooved drum sleeves

,

portable grooved drum sleeves

Light And Portable Nylon Material LEBUS Groove Sleeves Bolted On The Winch Drum



Product Introduction

 Material: Carbon Steel or Nylon
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM

Advanvantages of sleeves

A way to save money is to use a light reel and an outer bushing with a groove for the line, cut the bushing horizontally in two parts and bolt or weld it to or weld it to the light reel. If a different type or specification of wire rope is used in the future, the bushing can be removed and replaced with a bushing designed for the new wire rope.

The double fold cable groove system ensures that the multi-layer winding wire rope on the reel is completely smooth into and out of the reel, and can greatly prolong the life of the wire rope. This system is still the most effective and perfect method. Tests have shown that the Lebus reel can extend the wire rope with a rope groove matching the specifications of the wire rope



advantages of nylon
1. High mechanical strength, good toughness, high tensile and compressive strength. Its specific tensile strength is higher than that of metal, and its compressive strength is similar to that of metal, but its rigidity is not as good as that of metal.
2. Outstanding fatigue resistance, parts after repeated bending can still maintain the original mechanical strength.
3. High softening point, heat resistance (such as nylon 46, high crystalline nylon thermal deformation temperature is high, can be used for a long time in 150 degrees. PA66 after glass fiber reinforced, its thermal deformation temperature of 250 degrees or above).
4. Smooth surface, small friction coefficient, wear-resistant.

Production Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine


Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch



some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



Service conditions of Lebus groove

1.The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2.The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.
3.The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.
4.When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.
5.The rope must be kept round,not loose,even under the maximum load.
6.The rope must be anti-rotation structure.
7.Pls measure the change of rope diameter under different load.



Light Portable Grooved Drum Sleeves Nylon Material Lebus 0Light Portable Grooved Drum Sleeves Nylon Material Lebus 1Light Portable Grooved Drum Sleeves Nylon Material Lebus 2

Light Portable Grooved Drum Sleeves Nylon Material Lebus 3

Light Portable Grooved Drum Sleeves Nylon Material Lebus 4Light Portable Grooved Drum Sleeves Nylon Material Lebus 5

 Light Portable Grooved Drum Sleeves Nylon Material Lebus 6
